MacOS (Catalina) Installation

GET THE RIGHT VERSION

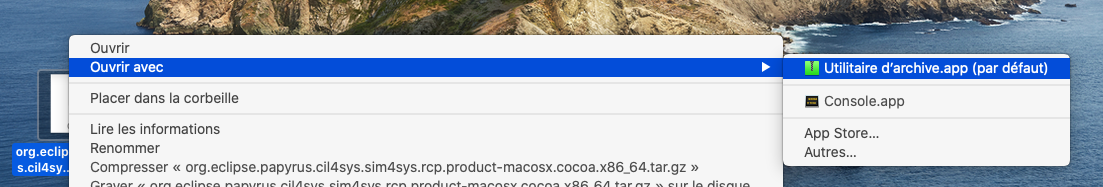

Download the relevant version of Sim4Sys for MacOS and unzip it :

MAKE THE SOFTWARE EXECUTABLE

Via terminal

In the good folder, run the following command

sudo chmod +x Sim4sys.app/Contents/MacOS/sim4sys

Run the application by double click

ALERT

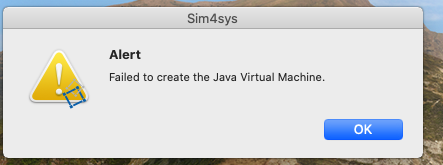

If the following alert is observed, you have to set the Java version for the app.

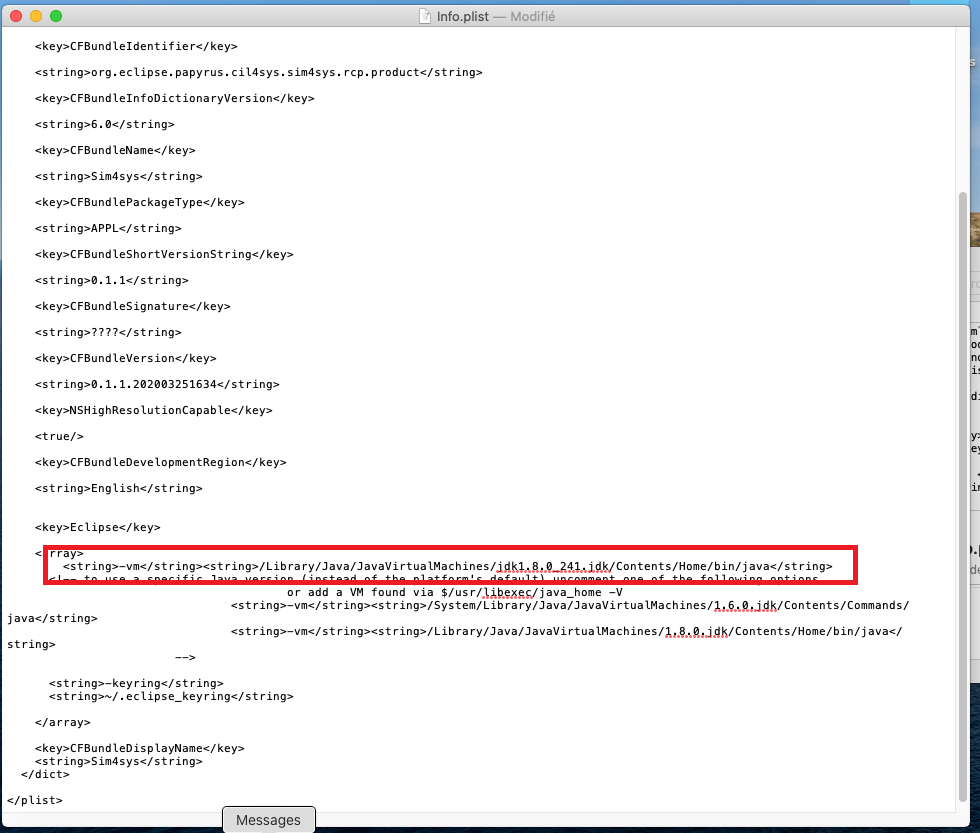

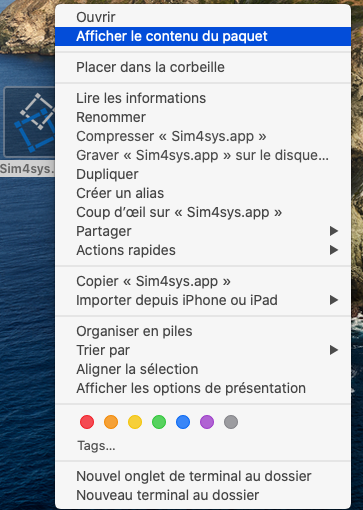

In Contents > Info.plist, set the vm to use corresponding to your installation of Java

To know your versions installed, execute the following line in the terminal:

 /usr/libexec/java_home

RUN THE APPLICATION

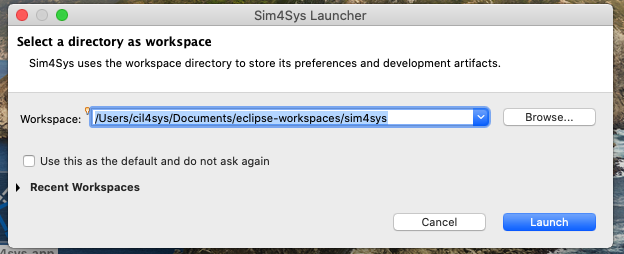

Chose a worskspace, for example :
