Generate Json from connector

You can generate a json file to retrieve, by clicking on a connector in the white box diagram :

• Connected interfaces, flows and parameters (name and type)
• Structures (datatype)
• Enumerations

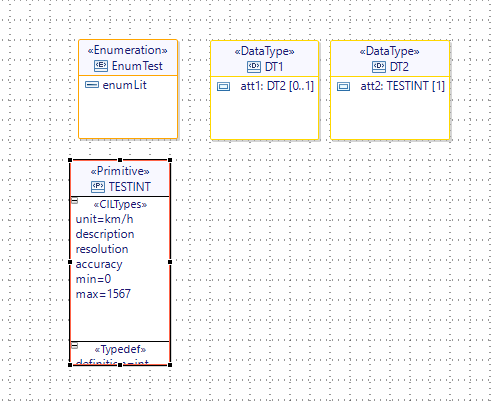

By creating a new "Primitive Type", you can set the type to :

To do this, after selecting the newly created type, open the "Properties" view, then in Profile, scroll down the applied profile: CILTypes and fill in "unit", "min", "max".

The result of clicking on "Generate types and flows for a connector" will be a .json file of this form:
