New Service

In this part, the Product is seen as a black box, the goal is to identify external entities that do not belong to the Product but do interact with it, and to create the interfaces between the Product, the users (humans, organizations) and the environment, and to identify macro activities realized by the Product.

NEW SERVICE​

A Service is a group of features delivered to users and the first functional view of the System.

To create a new Service, double Click on the Project structure diagram:

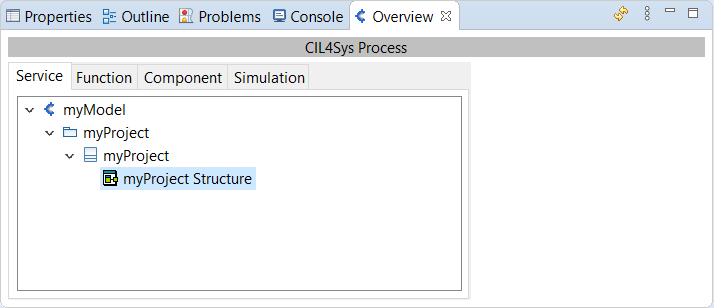

myProject Structure

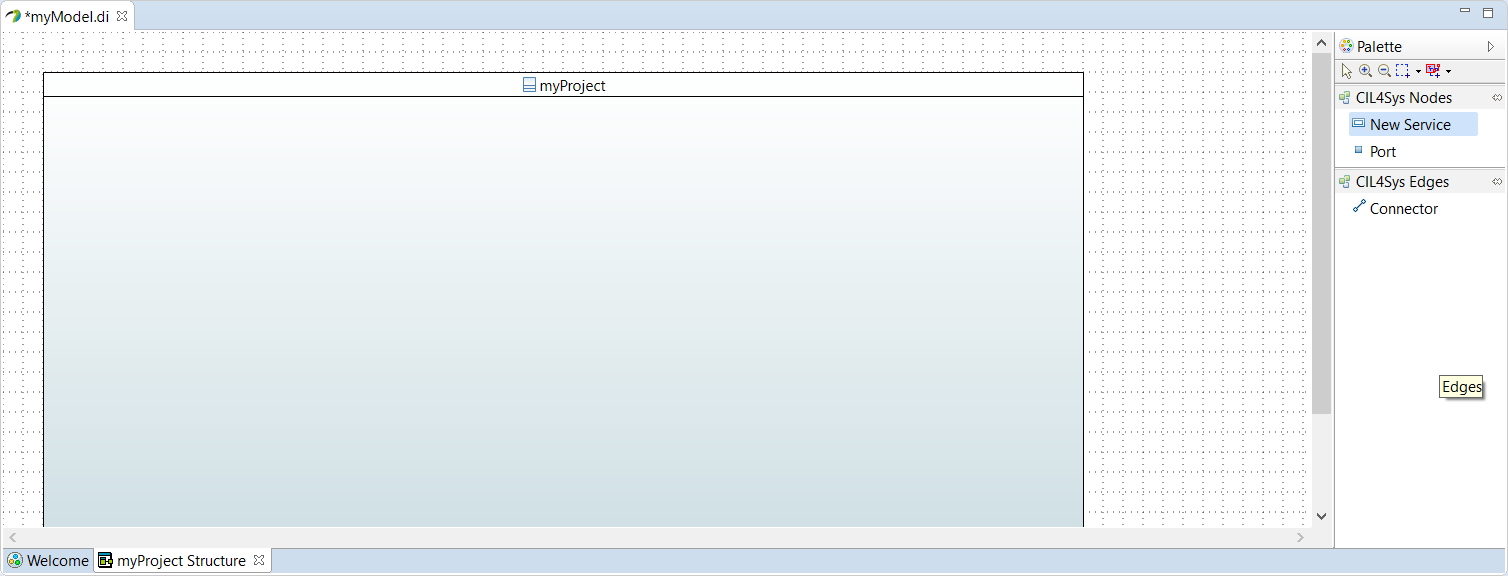

Then, Drag&Drop “New Service” in Product CSD (Composite Structure Diagram):

Product CSD

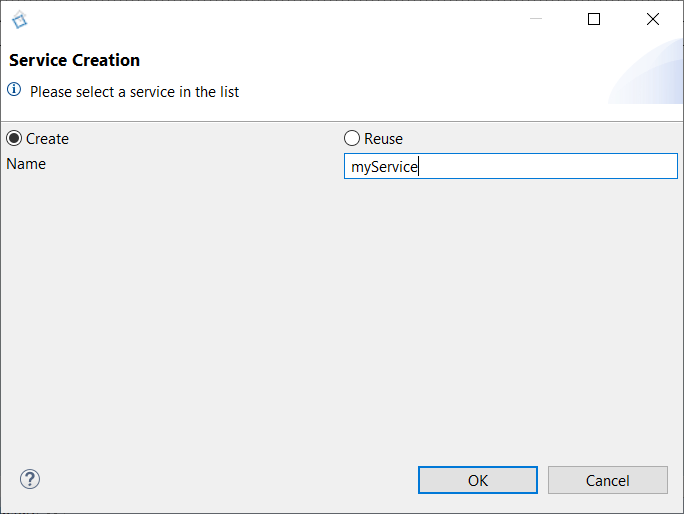

Select Create and type the name of the service:

myService

Finally, click on OK:

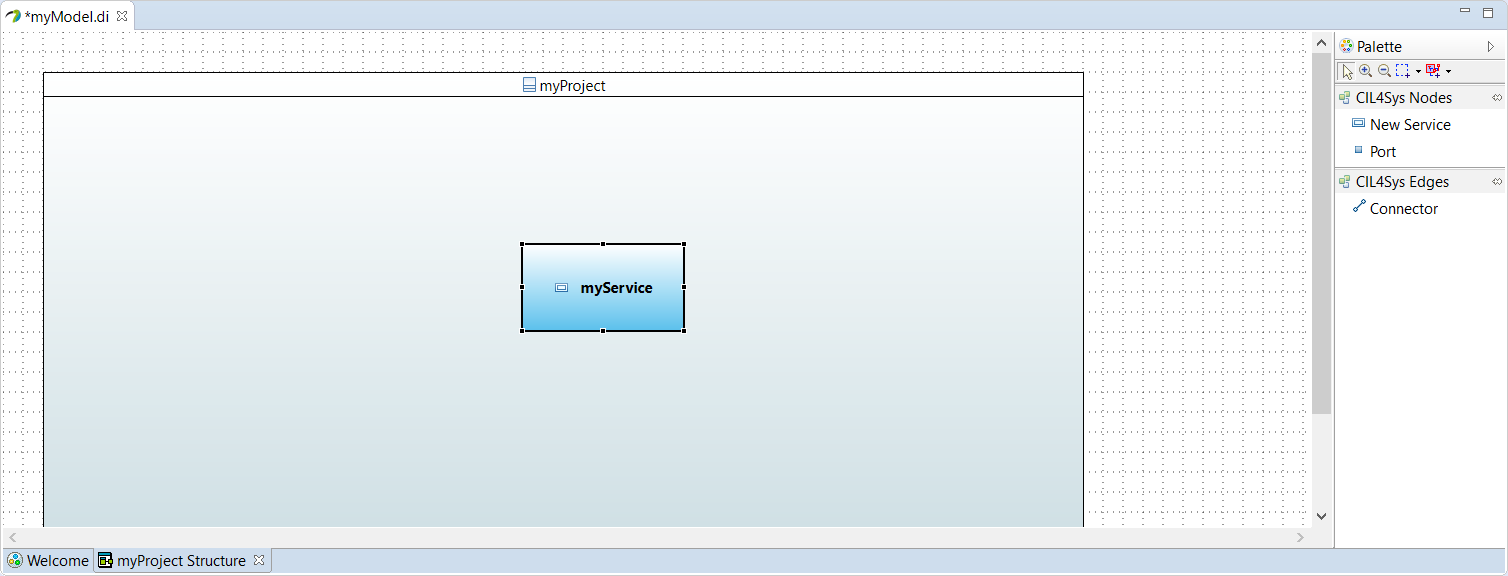

myService created
