Visualize Service

Now, we need to verify the coherence of the previous diagrams.

tip

Before visualizing, make sure you have generated the code and exported the XML file. For detailed mapping instructions, see Mapping by XML. To run visualizations in Virtual Bench, see the Run page.

MAPPING

What will allow you to make the link between the model and the Virtual Bench are the flows that have been defined at the Service level.

For this communication to be operational, you will export this information as an xml document.

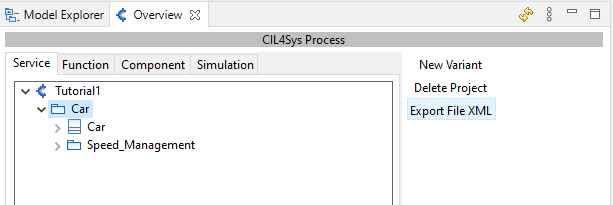

To do so, go to the Overview tab, select your project and click on Export File XML:

Go on the Virtual Bench: https://sim4sys.com/

To create a new executable, refer to this page.

To import xml document inside the Virtual Bench, refer to that page.
