Integrate a Matlab or a Python function

When operations require calculation, we use Matlab/Simulink® blocks, or Python codes, that we integrate as operations in our UML description, as it is more performant than UML.

To integrate an external function, you first have to generate (or write) a xml file to ease the integration in the UML model.

remarque

The integration of external functions is only possible for the version pro of Designer.

INTEGRATE A PYTHON FUNCTION​

From a python file containing useful functions, it is possible.

astuce

Python function integration requires Python 3.7, which was installed when the libraries were installed with Cygwin. If you forgot this step: (go to the page Cygwin installation)

Generate the integration file​

The file automotive.py contains the following python function:

def compute_braking_distance(speed, adhesionCoeff):
    gravitationConst = 9.81
    squareSpeed = speed**2
    result = squareSpeed / (2*gravitationConst*adhesionCoeff)
    return result

You can analyze this file to extract relevant informations to integrate this function in a model by using dedicated command.

run command to generate integration file

This opens a dialog which enables to analyse the python file.

integration app
  • Select the file to analyse
  • Tick default to generate a file with the same name than your input file
  • Click on Analyse Entry File

This will offer you the possibility to describe with more details the function and its parameters.

file analysis
  • Tick Generated case for each function you would use in the model.
  • Click Update to complete the data about this function.
  • Fill the data for each parameter and the function. This will help to integrate in the model.
function details
  • Validate the changes
  • Click on Generate XML File to obtain the integration file

Integrate a Python function in the model​

  • Right click on an activity in a sequence diagram
activity in sequence diagram
  • Select Edit > Complete Activity
  • Chose Python function
  • Click on Next
activity integration
  • Select the wanted python function. You can check the details and the parameters of the function
  • Click on Next
function choice
  • Update the mapping between inputs and outputs by chosing the variables of the model which have to be related to the variables of the function to call.
  • Then, click on Finish
function choice

These steps will generate the code to use the Python function at runtime.

Additional build settings to use Python functions​

With Cygwin (on Windows)​

You need to use the Python libraries deployed via Cygwin for your code to compile correctly.

Right-click on the folder of the generated C++ project in the Project Explorer, then select "Properties".

astuce

The folder name is <Name_of_Model>_DefaultNode_<Name_Of_Variant>.

  • Navigate to C++ Build > Settings, then in the Tool Settings tab, select Cygwin C++ Compiler > Includes (refer to the screenshot below),
  • Add the path to your local Python includes in Include paths (-I): C:\cygwin64\usr\include\python3.7m (adapt based on your Cygwin installation),
  • Add Python.h to Include files (-include),
python_include

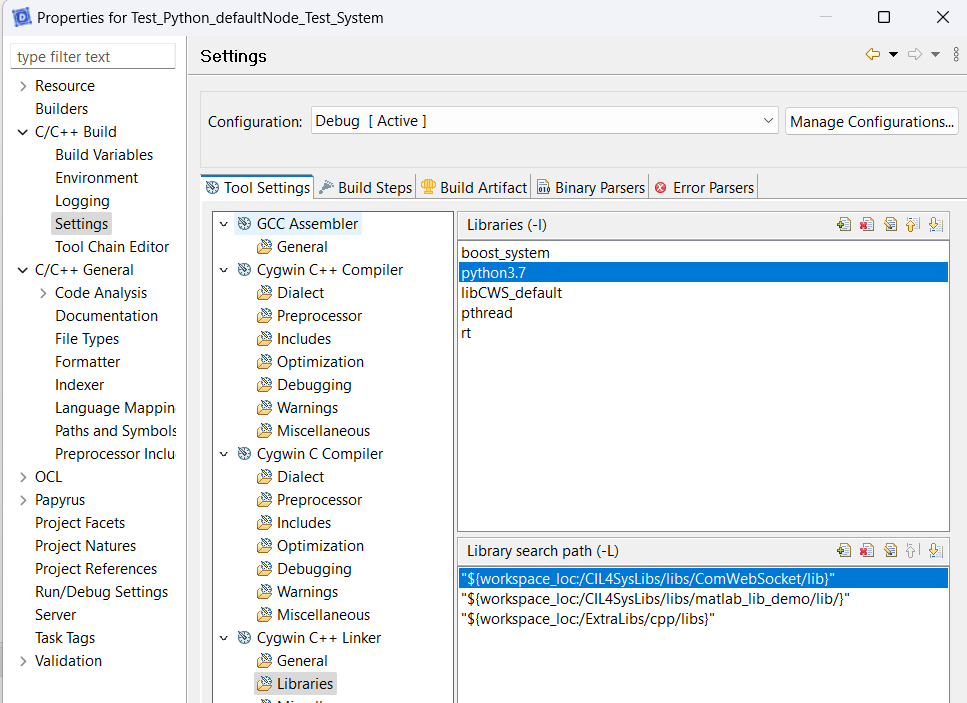

  • Go to Cygwin C++ Linker,
  • Add python3.7 to Libraries.
python_lib
