Code of the State Machine

In order to validate the Service State Machine, we need to generate a code to test.

astuce

Before generating code, make sure you have generated the state machine transitions. After code generation, you can visualize your service in Virtual Bench or launch the executable directly.

C++ CODE GENERATION​

To generate all your Model in code, go to the Overview tab, and click on [Code] Generate (generates 100% of code) or [Code] Generate and build (generates code then executes it):

Generate Code

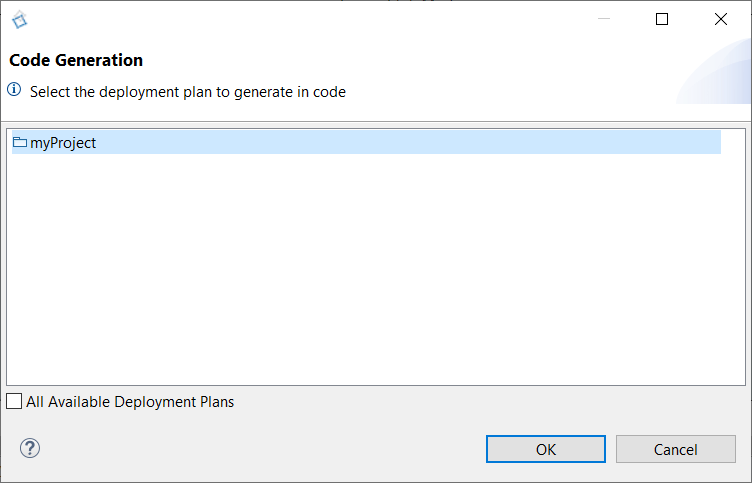

Then select your Project(s) and click on OK:

Project Selection

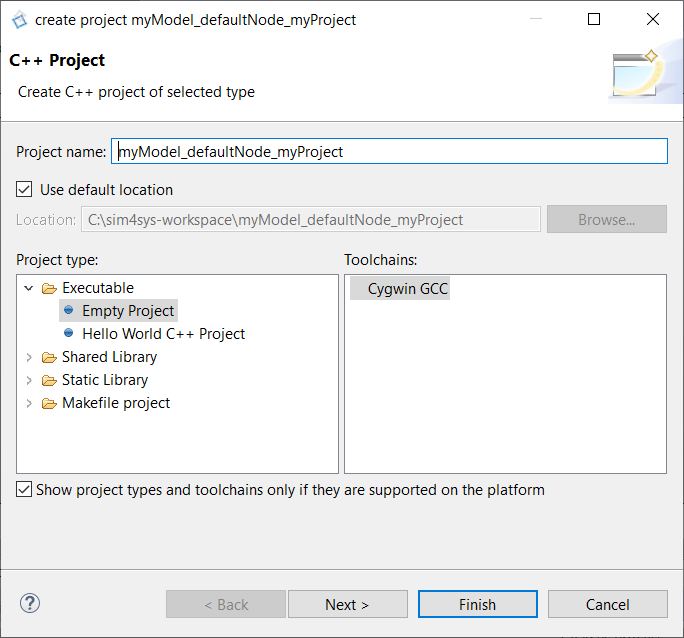

Now, you have to select a compilator (for Windows, Cygwin 64 must be installed), and click on Finish:

Compilator Selection

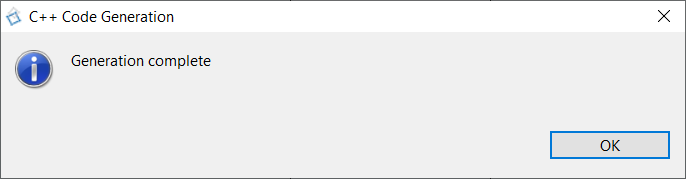

Once the code generation finished, you will be informed by the below pop-up:

Code Generation Confirmed

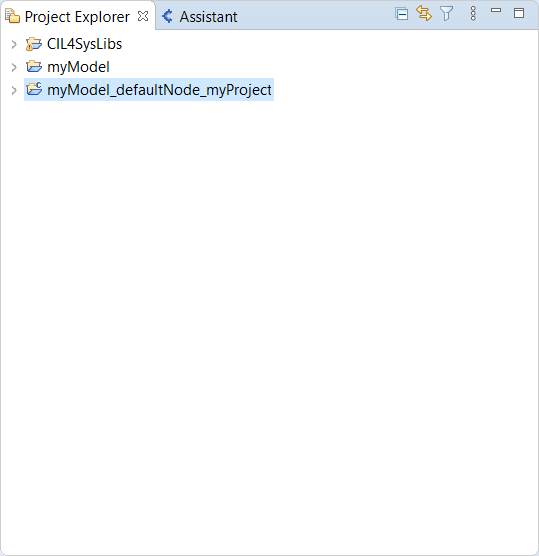

You can see the C++ code project in the Project Explorer tab:

Code Generation Confirmed

BUILD C++ CODE PROJECT​

This section is usefull only if you selected [Code] Generate.

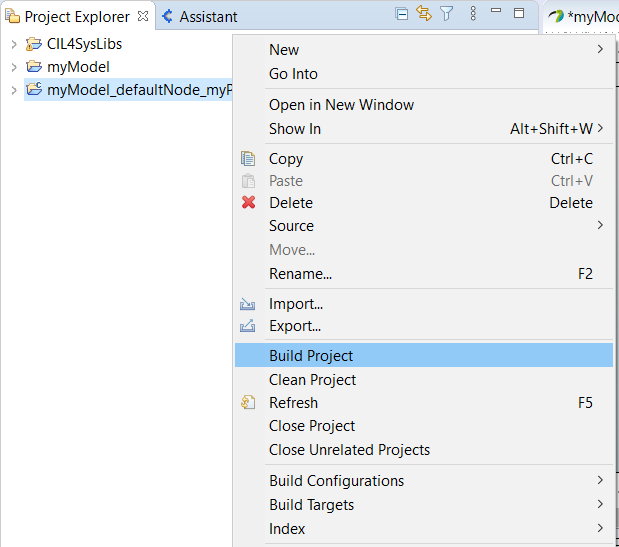

Now, right click on the C++ project and select Build Project (you must import CIL4SysLibs as a project before), then you can build your project:

C++ Code Project Properties

RUN AS​

To Run the project :

  • Right click on the C++ project
  • Select "RunAs > C/C++ Application" and switch back to your Sim4Sys project.
