Start to use Sim4Sys with a simple model (blackbox)

PRESENTATION

This tutorial is an introduction to the practice of the method. You will be guided through the process to realize your first model and the associated simulation.

Prerequisites

You should have already done the first tutorial Hello World.

News skills that you will acquire

On Designer:

Define a Type,
Add conditions in a User Story.

On Virtual Bench:

Edit a Context,

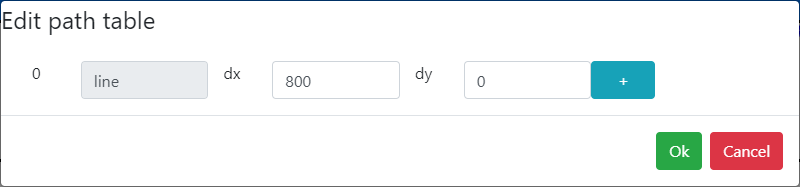

Use new Context elements: Gauge, Car, Road Pavement,

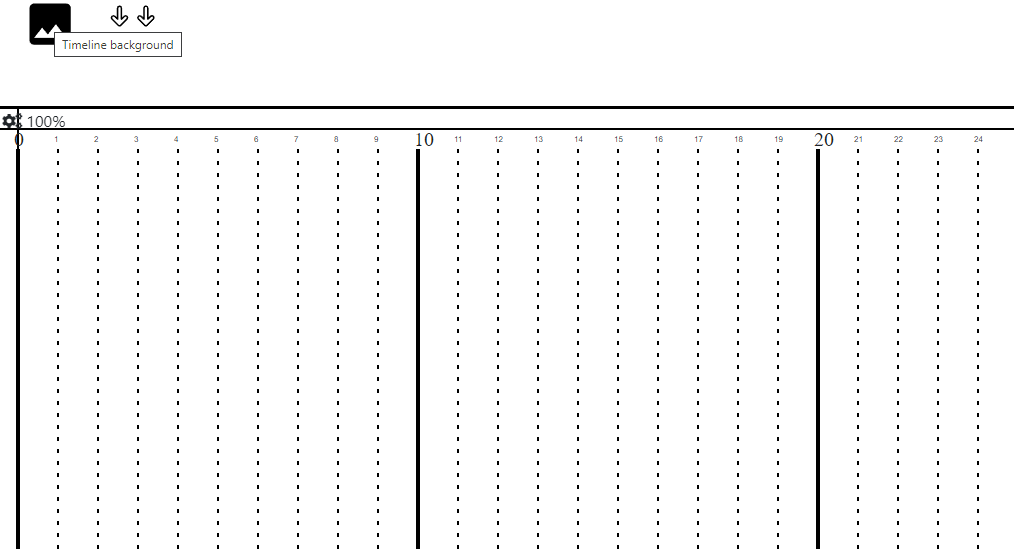

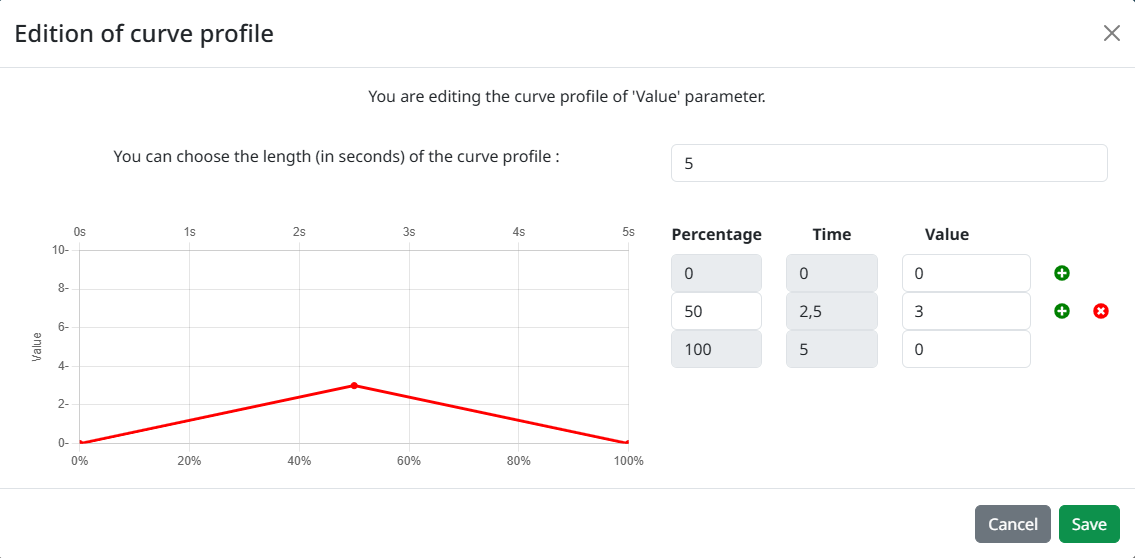

Add a Curve Profil.

Duration

CREATE A MODEL

Click on File > New > Papyrus Project

Select CIL4SysLanguage checkbox

Click on Next

Type the name of the Papyrus Project: Tutorial1, in the project name field
Click on Next

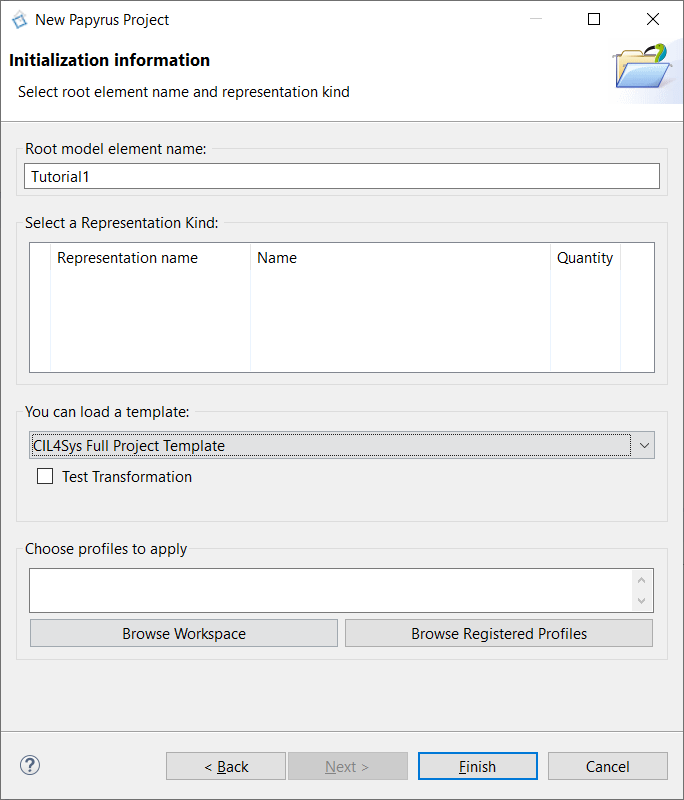

Select CIL4Sys Full Project Template in the field: “You can load a template”
Click on Finish

CREATE A PROJECT

Select Tutorial1 in CIL4Sys Overview. You can use the Refresh View button when selecting the Overview tab.

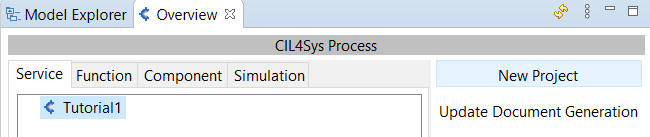

Click on New Project

astuce

Sometimes, the button does not appear because of the size of the window. You can either resize the Overview tab horizontally or use a bigger screen.

Type the name of the project: Car
Click on OK

Click on Ok in the confirmation dialog box

CREATE A SERVICE SPEED MANAGEMENT

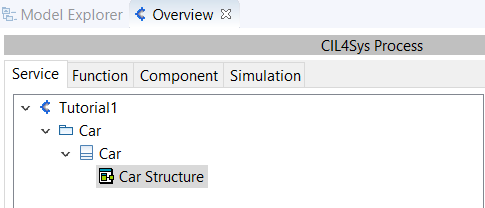

Double Click on the Car Structure diagram

astuce

You can resize the composite structure diagram by dragging the corners

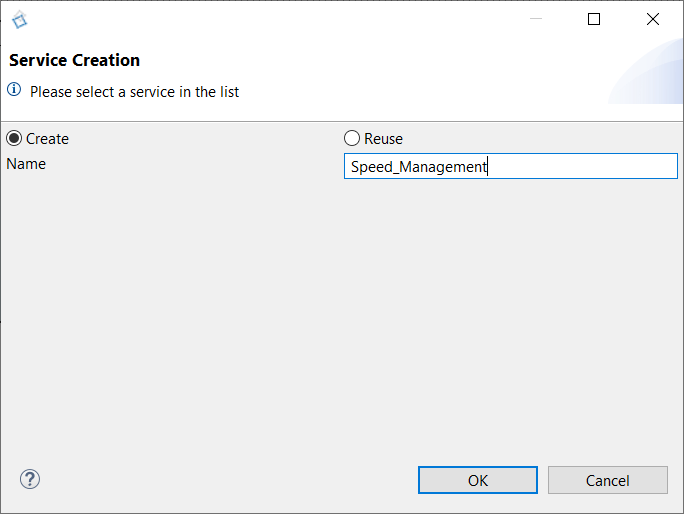

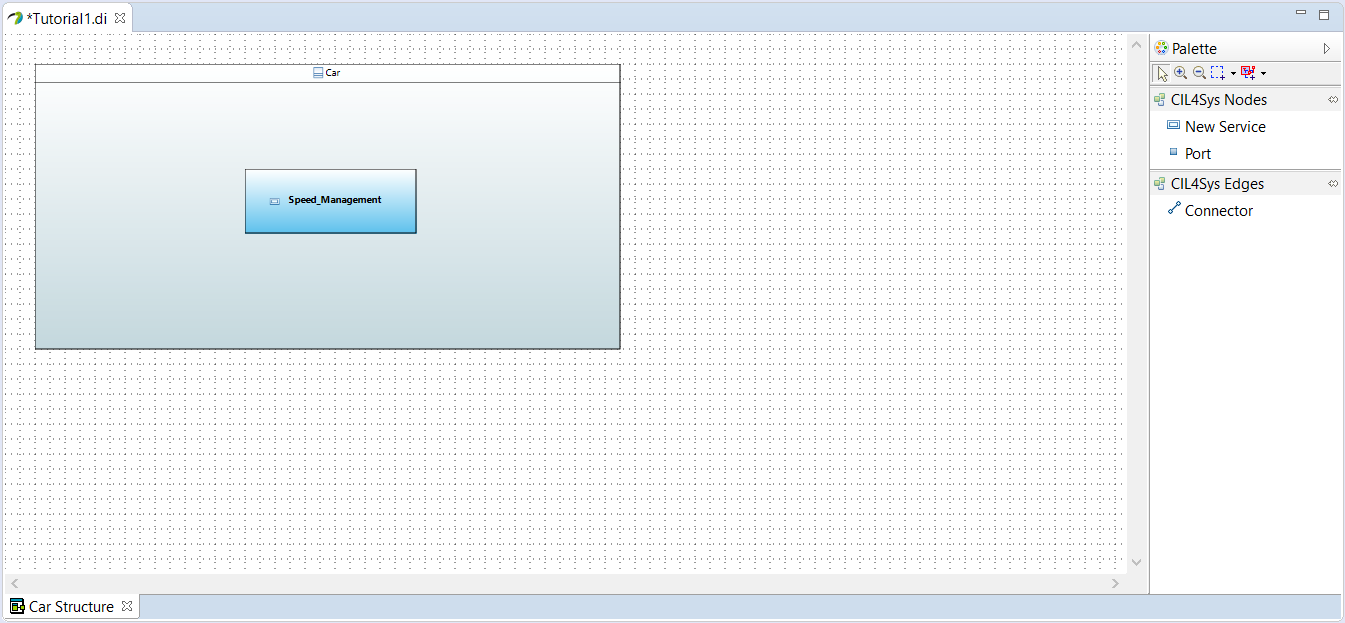

Drag&Drop a New Service in Product CSD

Select Create
Type the name of the service: Speed_Management

Click on OK

ADD A LIFE PHASE TO A SERVICE

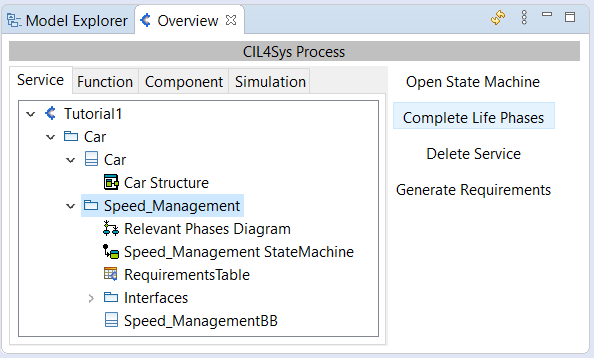

Select Speed_Management Package in CIL4Sys Overview (refresh if it does not appear).

Click on Complete Life Phases
Drag&Drop a New Life Phase in the diagram for relevant phases of the service
Select Standard Use
Click on OK

CREATE A SIMPLE USE CASE

Select Standard Use

Click on Complete Use Cases

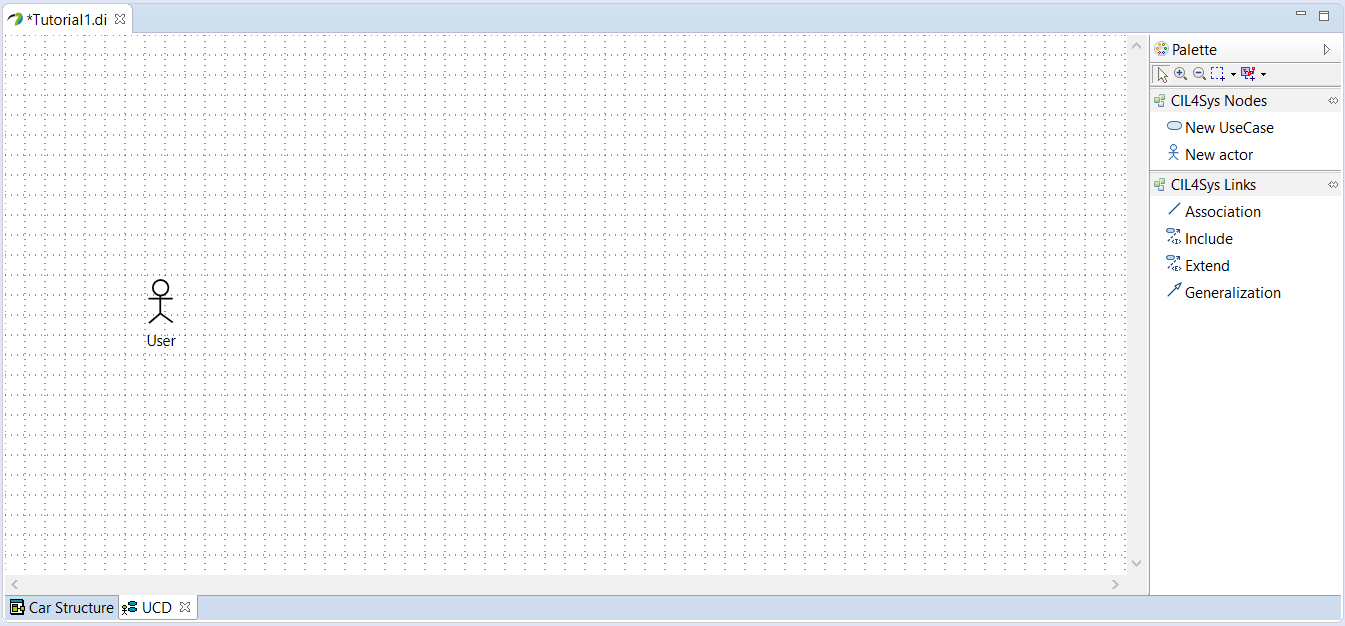

Drag&Drop an actor on the diagram

Select User
Click on OK

Drag&Drop a New UseCase on the diagram

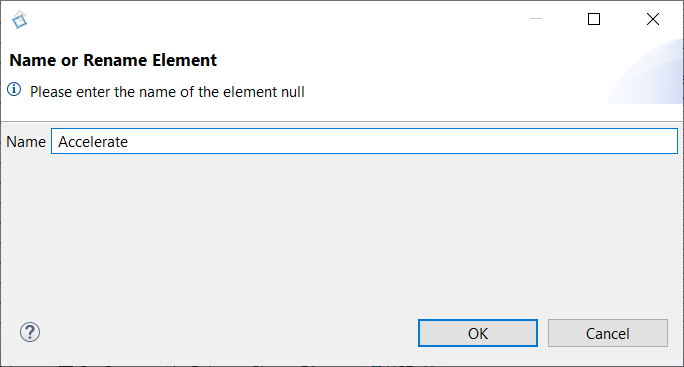

Type the name of the use case: Accelerate

Click on OK
Trace an association between the actor and the use case

CREATE A USER STORY IN A USE CASE

Select Accelerate package in the CIL4Sys Overview

Click on New User Story

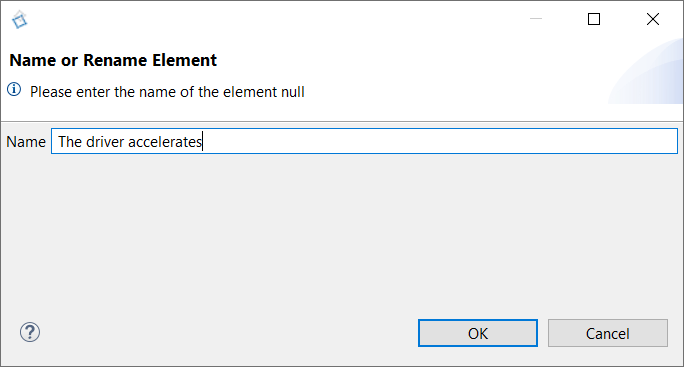

Type the name of the user story: The driver accelerates
Click on OK

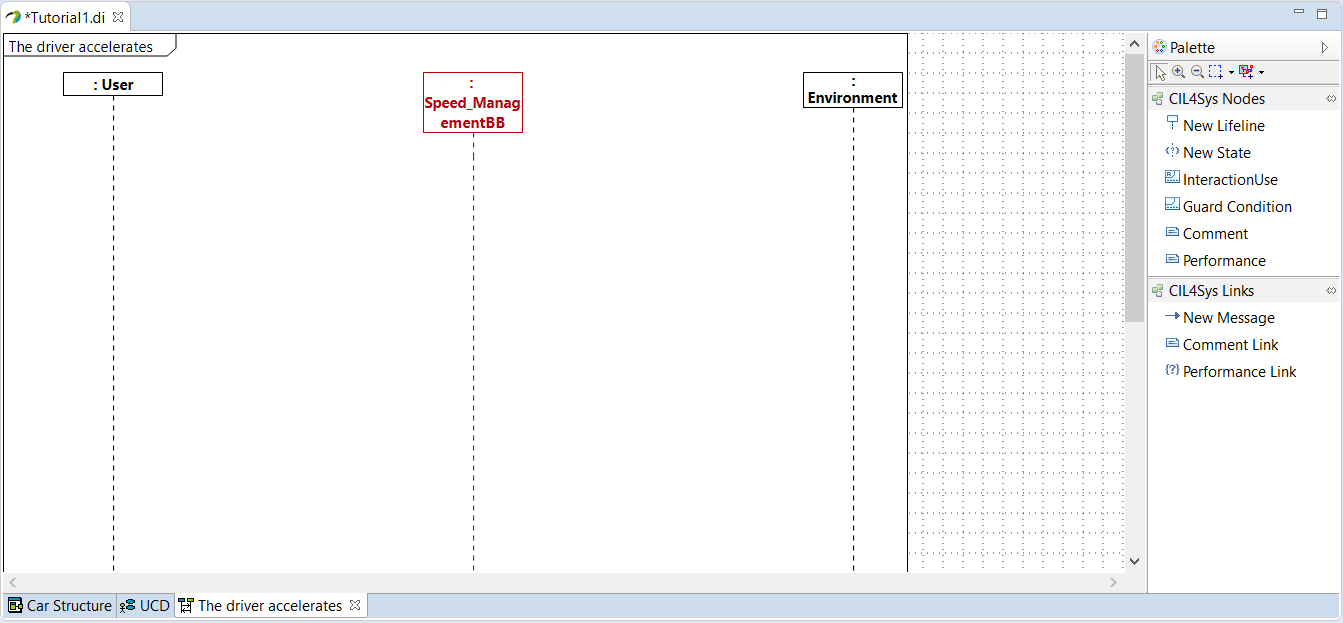

Double Click on the user story: The driver accelerates

The driver accelerates User Story package

COMPLETE THE USER STORY

Drag&Drop a New State on the Speed_Management Service lifeline

Select FirstState
Click on OK
Rename the state after creation (in Active). You can do it just after the creation or by the Properties view of Papyrus

Trace a New Message between the user and the service

Click on Create a new flow

Drag&Drop a New Interface on the diagram

Type the name of the interface: I_the_driver_requests_to_accelerate
Click on OK

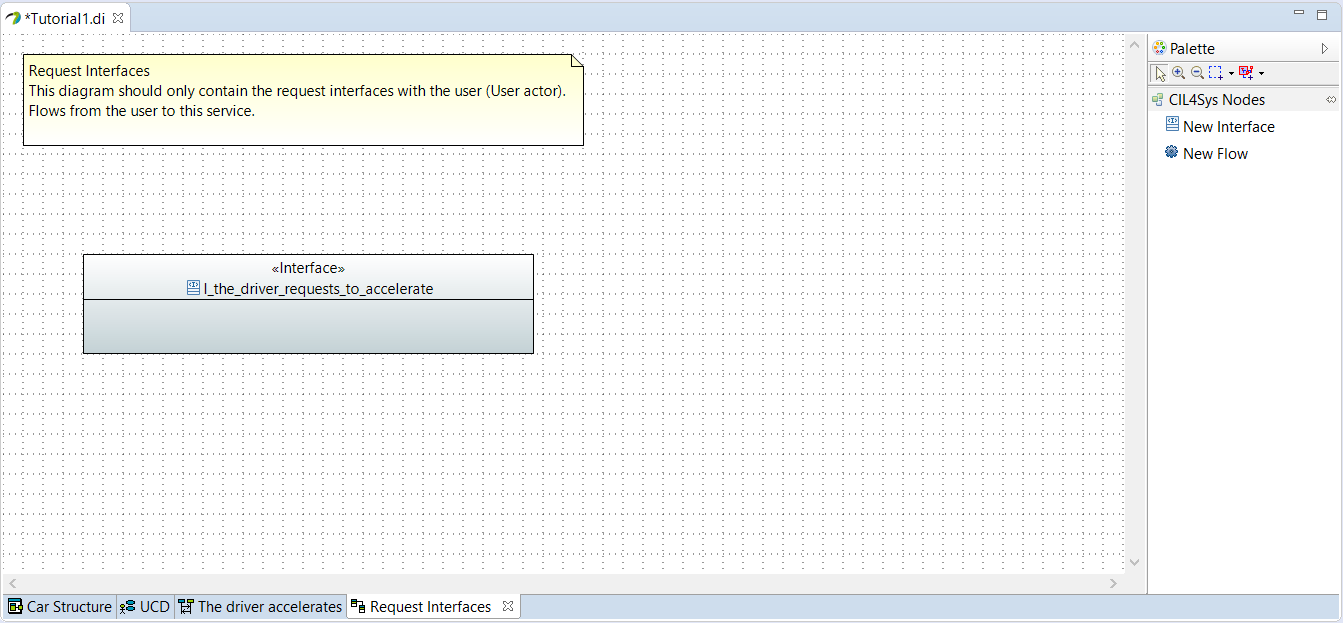

I_the_driver_requests_to_accelerate created

Before creating a new flow in the interface, we need to create a new data type AccelerationType

Click on the View menu button in the CIL4Sys Overview
Click on Create Type

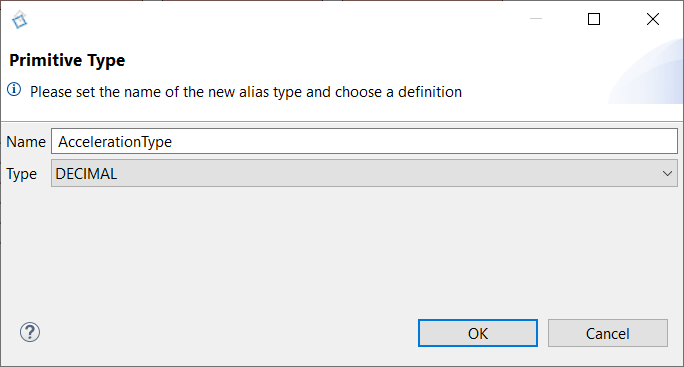

Create a New PrimitiveType

Type the name: AccelerationType
Choose the type: DECIMAL
Click on OK

Go back to the Request Interfaces diagram by clicking on the tab Request Interfaces

astuce

If you have closed the diagram previously, you can still get back to it via the CIL4Sys overview in the Interface package

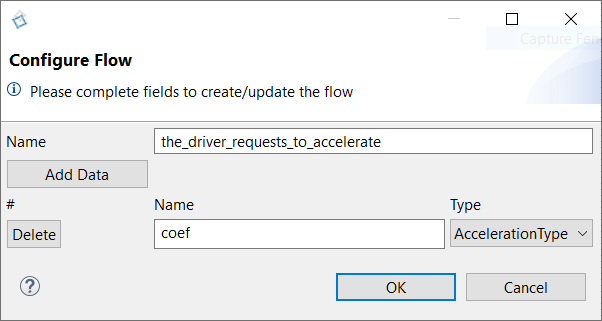

Drag&Drop a New Flow in the newly created interface

Type the name
Click on Add Data
Type the name of the data: coef
Select the type of the data: AccelerationType
Click on OK

the_driver_requests_to_accelerate created

Go back on the user story
Trace a New message between the user and the service

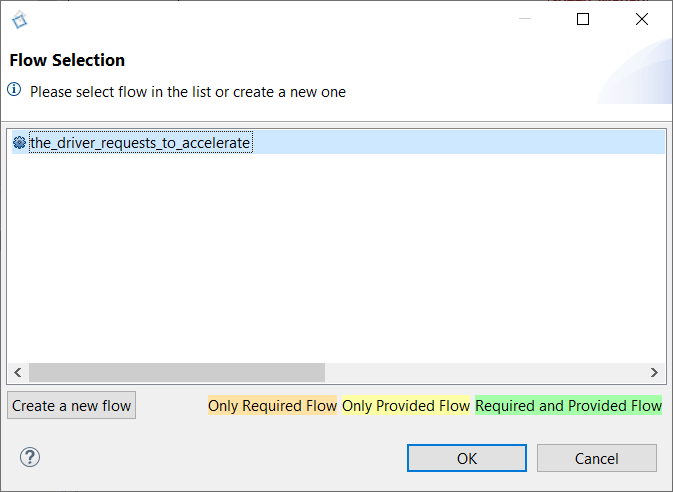

Flow Selection with the_driver_requests_to_accelerate

Select the newly created flow
Click on OK
Trace a message between the service lifeline on itself (internal activity)

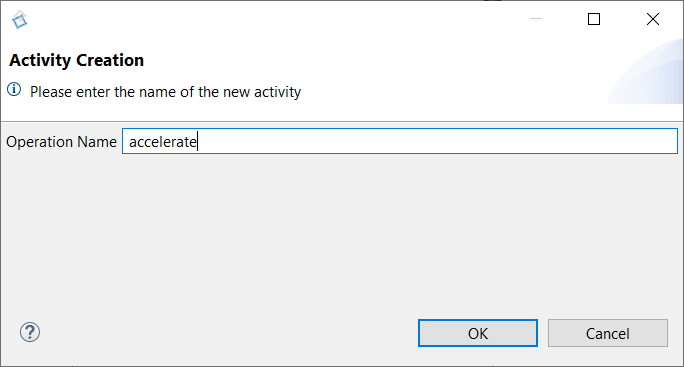

Click on Create a new activity

Type the name of the activity: accelerate
Click on OK
Right-click on the service lifeline
Select Edit > Create Variable

Type the name of the variable: car_acceleration
Choose the type: AccelerationType
Set an init value: 0.0
Click on OK

Right-click on the accelerate activity

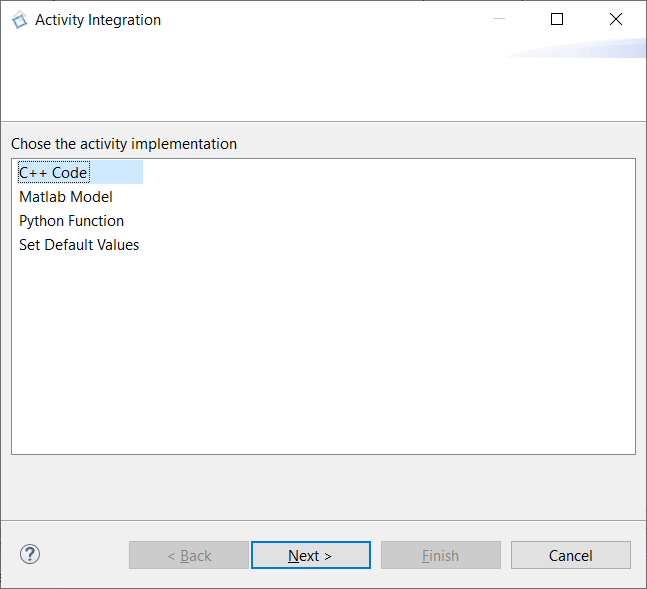

Choose Edit > Complete Activity

Select C++ Code
Click on Next

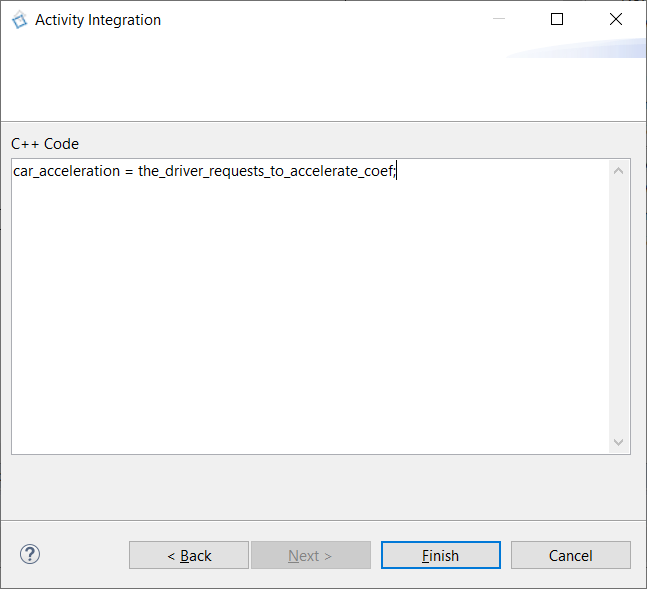

Type the code to accelerate: car acceleration = driver request acceleration (with both accelerations in m/s²)

car_acceleration = the_driver_requests_to_accelerate_coef;

Click on Finish

Trace a New Message between the service and the environment
Click on Create a New Flow

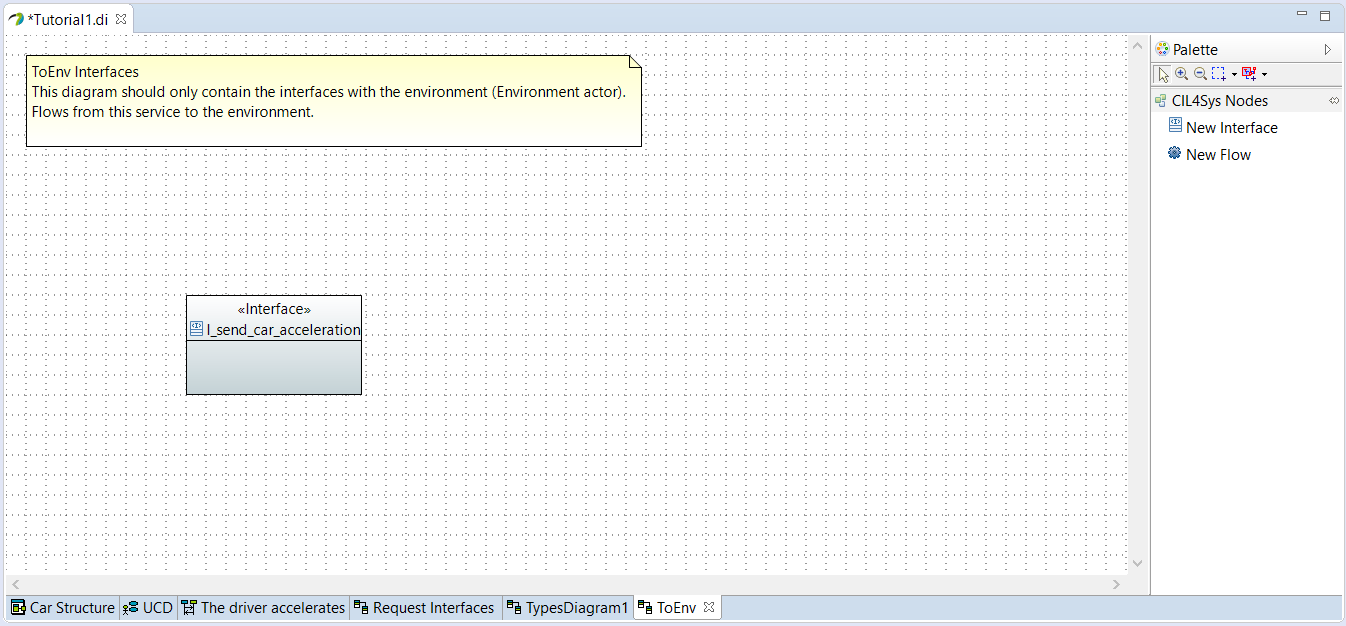

Drag&Drop a New Interface on the diagram
Type the name of the interface: I_send_car_acceleration

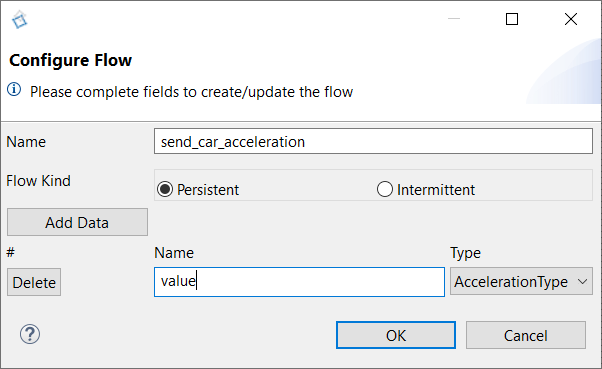

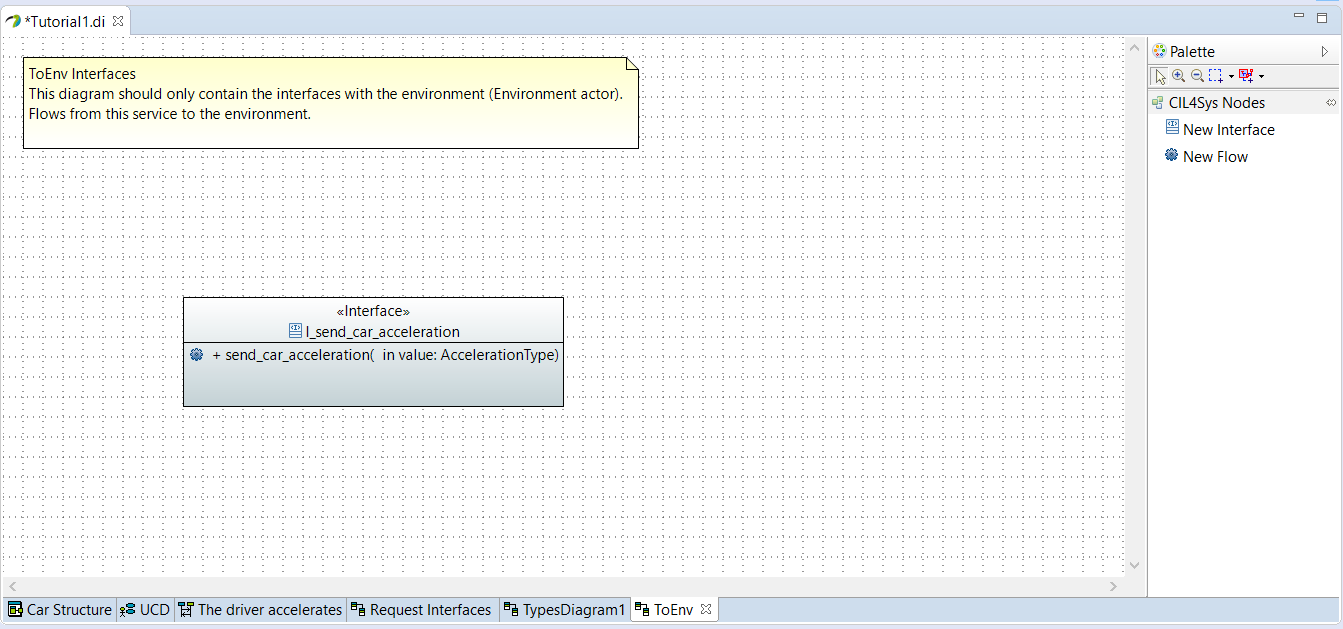

Drag&Drop a New Flow in the newly created interface

Type the name: send_car_acceleration
Click on Add Data
Type the name of the data: value
Select the type of the data: AccelerationType
Click on OK

Go back on the user story
Trace a new message between the service and the environment
Select the newly created flow
Click on OK

Flow Selection with send_car_acceleration

Select the data value: car_acceleration
Click on OK

Select the user story in the CIL4Sys Overview

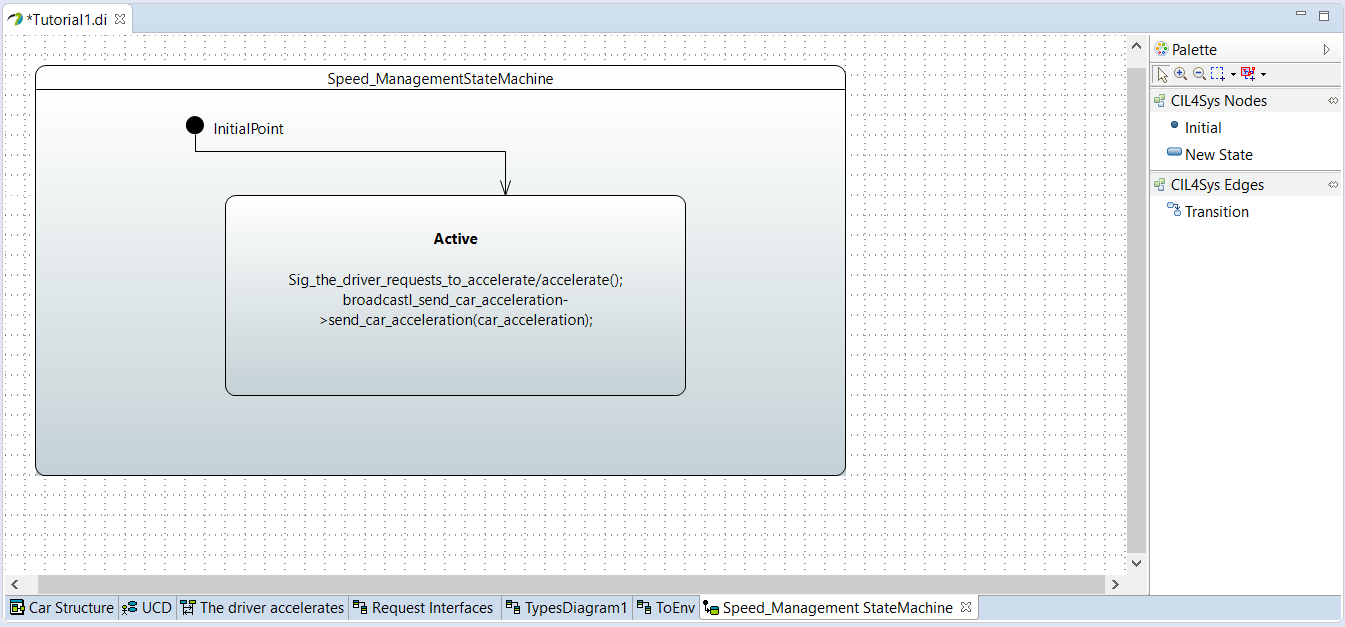

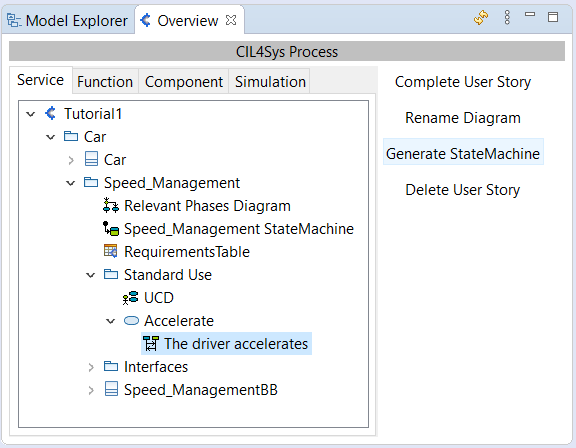

Click on Generate State Machine
Click on Ok in the confirmation dialog box

astuce

Regenerate the state machine after each change in diagrams. You should find in the state machine everything that you have written in the diagrams. The state machine helps you to check the model consistency. It is also essential for the simulation to work.

remarque

TO GO FURTHER
For your future projects you should :

Use the same project structure: project > products > services > life phases > use cases > user stories. One project can have several products, one product can have several services, and so on.
Use types (as AccelerationType) to clarify the type of information you want to exchange in your model, it’s a tool to help you even if you find it useless at the beginning of the training, it is a good work habit.

In the following, we are going to apply the same steps to create other usecases.

USECASE "INFORM OF CAR SPEED"

Click on the View menu button on the CIL4Sys overview
Click on Create Type
Click on Create a new primitive type

Type the name: SpeedType
Choose the type: Decimal
Click on OK

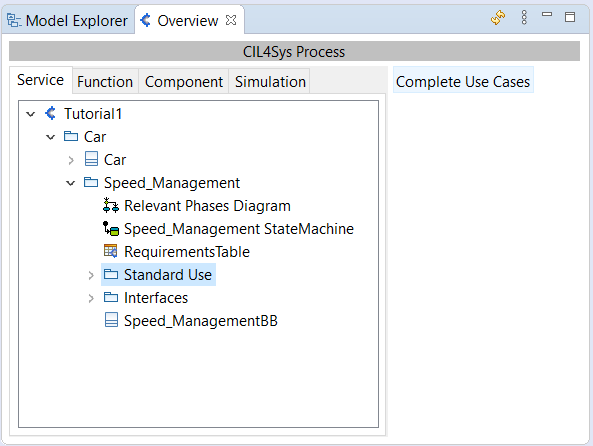

Select Standard Use Package in CIL4Sys Overview
Click on Complete Use Cases
Drag&Drop a New UseCase on the diagram
Type the name of the new use case: Inform of car speed
Click on OK

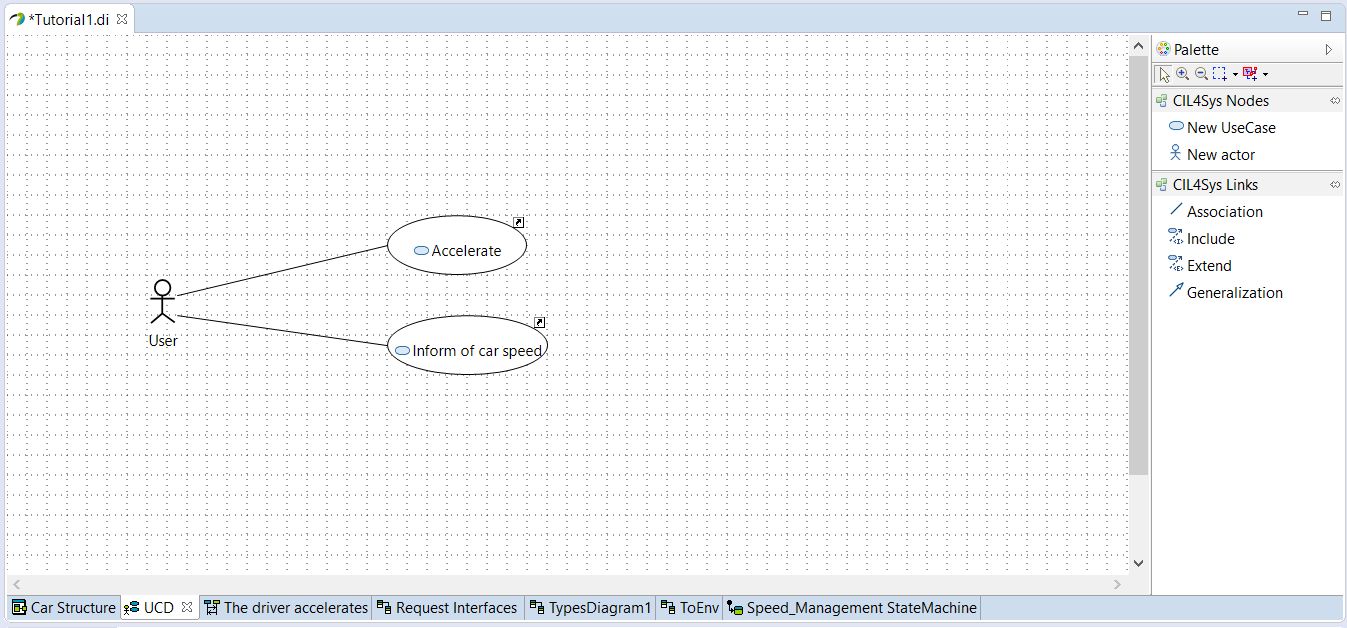

Trace an association between the actor and the newly created use case

Select the use case Inform of car speed in the CIL4Sys Overview
Click on New User Story

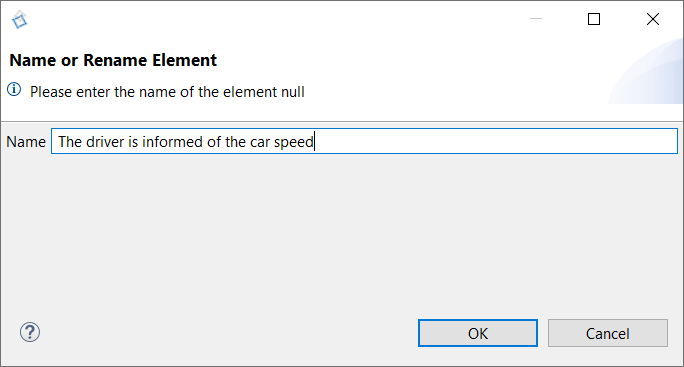

Type the name of the user story: The driver is informed of the car speed

Create The driver is informed of the car speed userstory

Click on OK
Double Click on the newly created user story in the CIL4Sys Overview

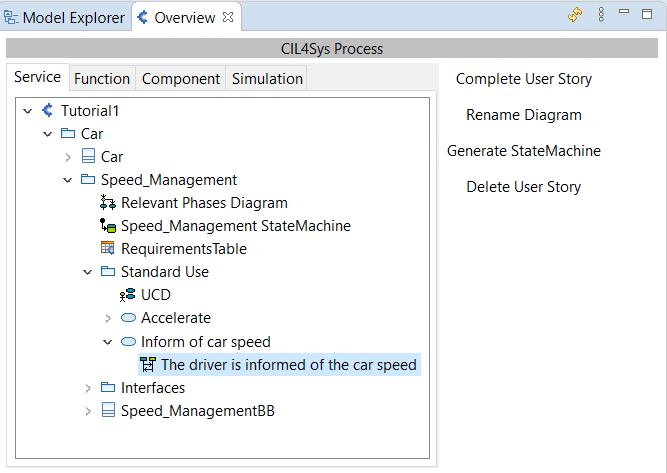

The driver is informed of the car speed package

Drag&Drop a New State on the service lifeline
Select Active
Click on OK
Trace a message between the environment and the service
Click on Create a new flow
Drag&Drop a New Interface on the FromEnv Interfaces diagram
Type the name of the interface: I_the_car_speed_is_received
Click on OK

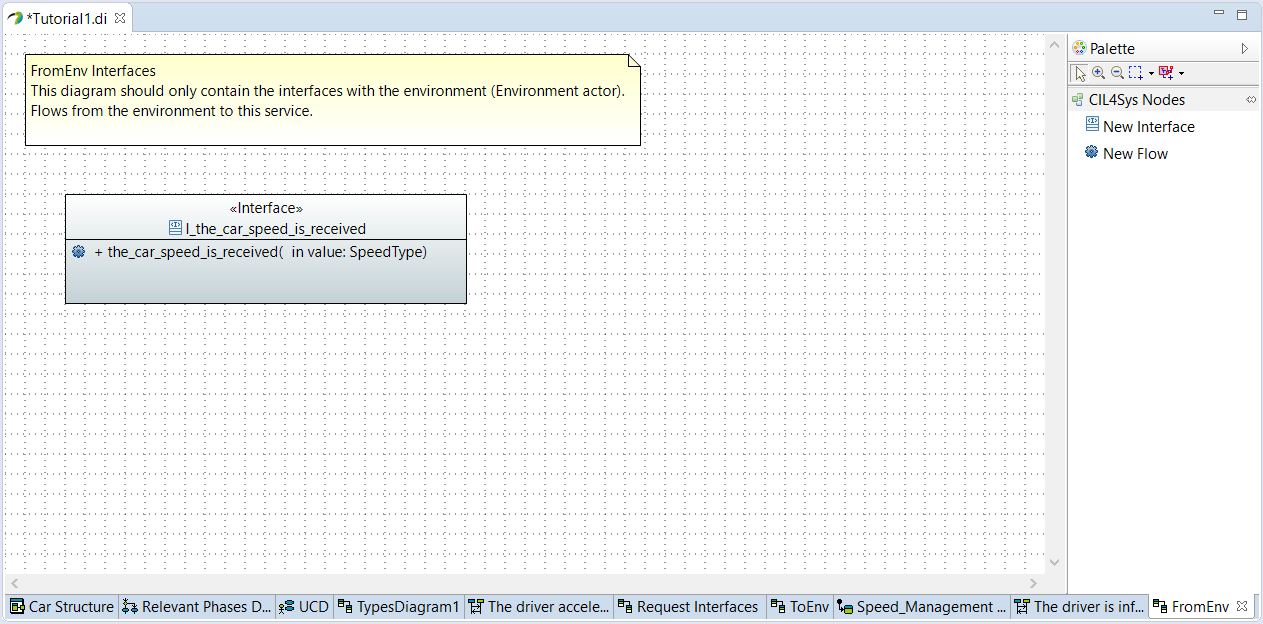

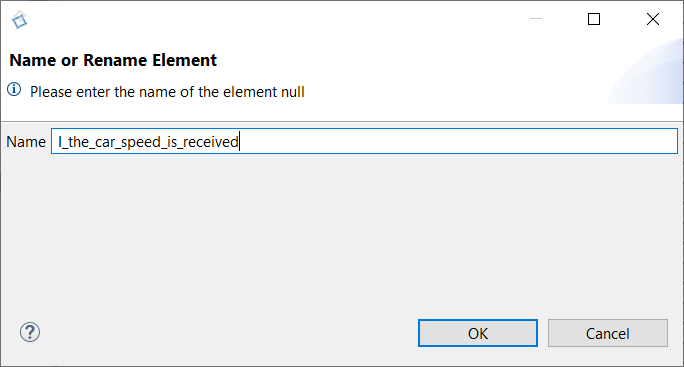

I_the_car_speed_is_received interface creation

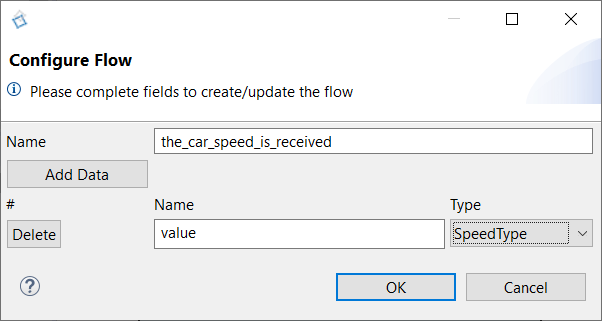

Drag&Drop a New flow in the newly created interface
Type the name: the_car_speed_is_received
Click on Add data
Type the name: value
Set the type of the data: SpeedType

Go back on the sequence diagram
Trace a message between the environment and the service
Choose the_car_speed_is_received
Trace a New Message between the service and the user
Click on Create a New Flow
Drag&Drop a New Interface on the Feedback Interfaces diagram
Type the name of the interface: I_inform_the_driver_of_the_car_speed)
Click on OK
Drag&Drop a New flow in the newly created interface
Type the name: inform_the_driver_of_the_car_speed
Click on Add data
Type the name: value
Set the type of the data: SpeedType

inform_the_driver_of_the_car_speed creation

Go back on the sequence diagram
Trace a message between the service and the user
Choose inform_the_driver_of_the_car_speed
Click on OK
Select the value: the_car_speed_is_received_value
Click on OK

The driver is informed of the car speed Sequence Diagram

Select the user story in the CIL4Sys Overview

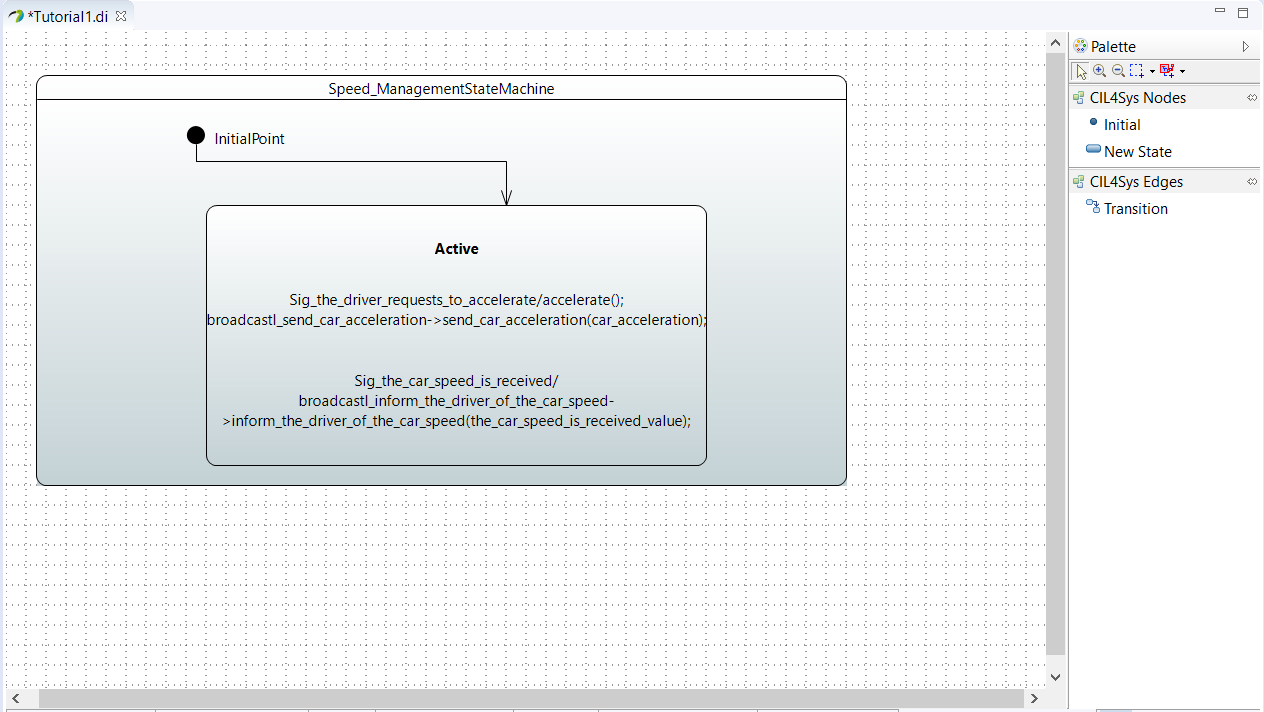

Click on Generate State Machine
Click on Ok in the confirmation dialog box

USECASE "BRAKE"

Select Standard Use Package in CIL4Sys Overview
Click on Complete Use Cases
Drag&Drop a New UseCase on the diagram
Type the name of the new use case: Brake
Click on OK
Trace an association between the actor and the newly created use case

Select the use case Brake in the CIL4Sys Overview
Click on New User Story

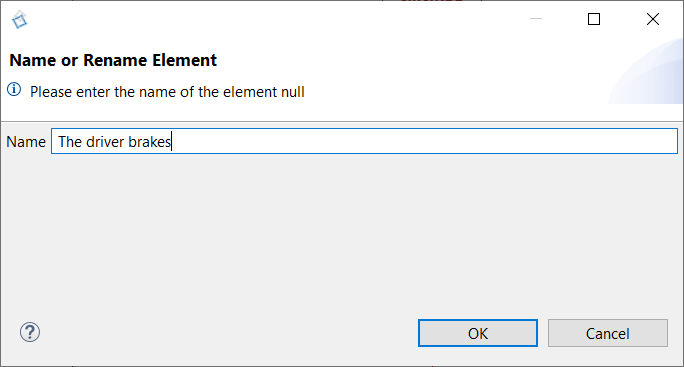

Type the name of the user story The driver brakes

Click on OK

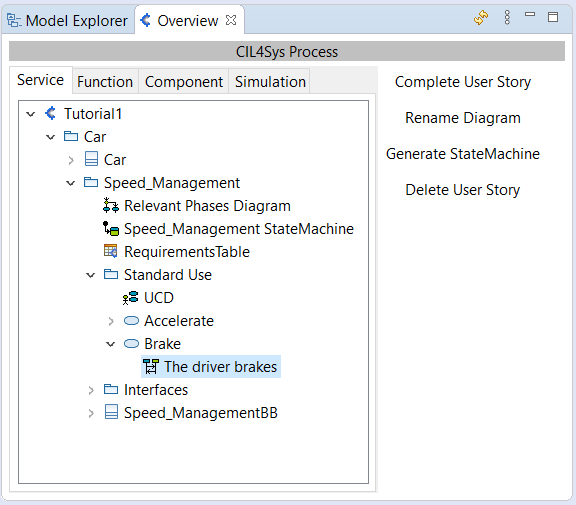

Double Click on the newly created user story in the CIL4Sys Overview

Drag&Drop a New State on the service lifeline
Select Active
Click on OK
Trace a message between the user and the service
Click on Create a new flow
Drag&Drop a New Interface on the Request Interfaces diagram

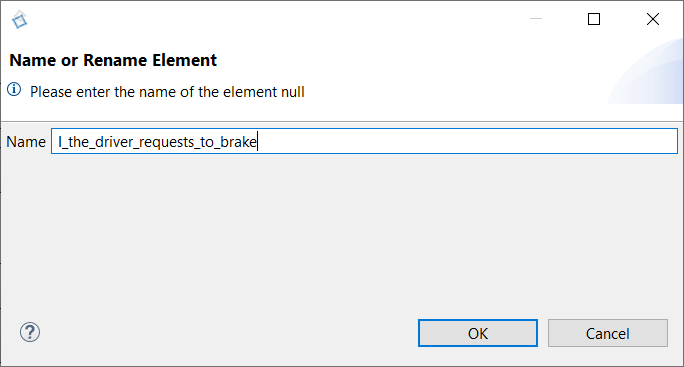

Type the name of the interface: I_the_driver_requests_to_brake
Click on OK

I_the_driver_requests_to_brake interface creation

Drag&Drop a New flow in the newly created interface
Type the name: the_driver_requests_to_brake
Click on Add data
Type the name: coef
Set the type of the data: AccelerationType

Go back on the sequence diagram
Trace a message between the user and the service
Choose the_driver_requests_to_brake
Trace a New Message between the service and itself
Click on Create a New Flow
Type the name of the flow: brake
Trace a New Message between the service and the environment
Choose send_car_acceleration
Click on OK
Select the variable car_acceleration to return
Click on OK

Right-click on brake internal activity
Right-click on the internal activity, Edit > Complete Activity
Select _C++ Code _
Click on Next

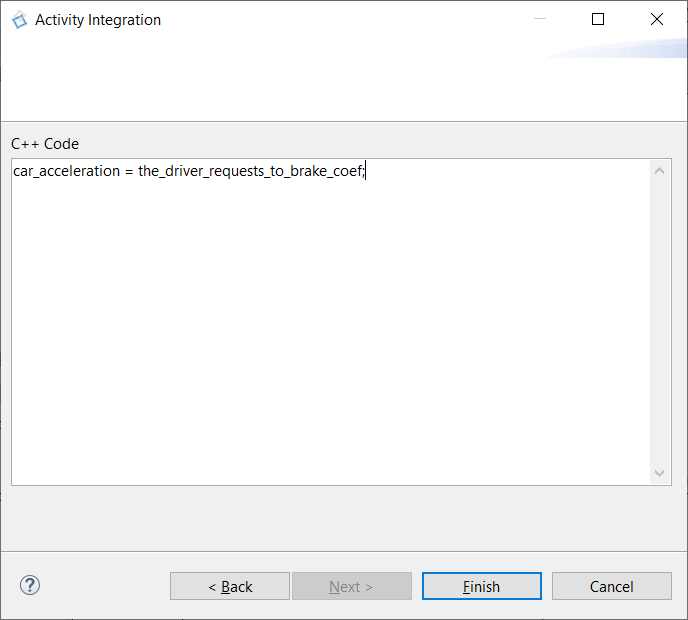

Type the code to brake

car_acceleration = the_driver_requests_to_brake_coef;

Click on Finish

Right-click on the service lifeline
Click on Edit > Create Constant
Type the name: NULL_SPEED
Choose the SpeedType
Set the initial value to 0.0

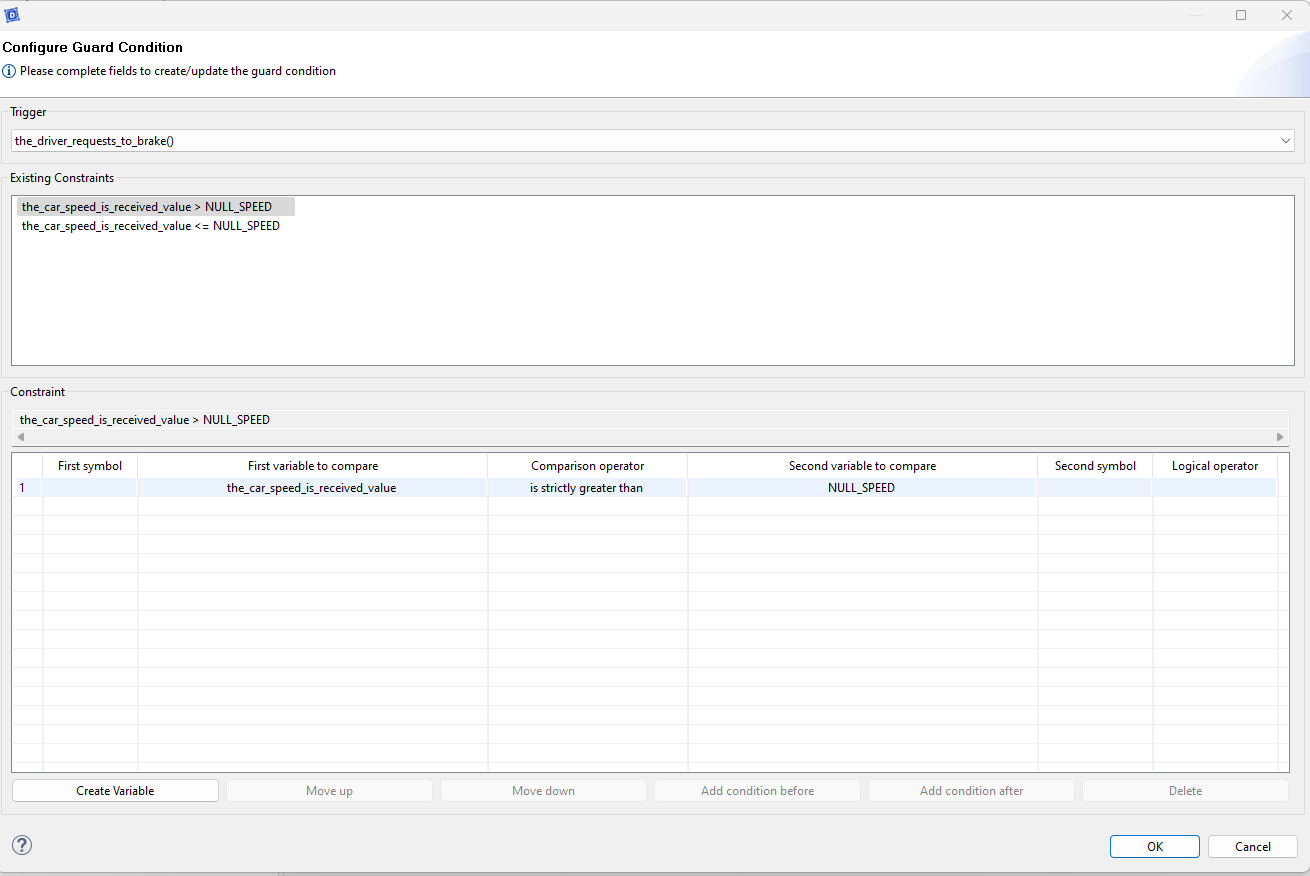

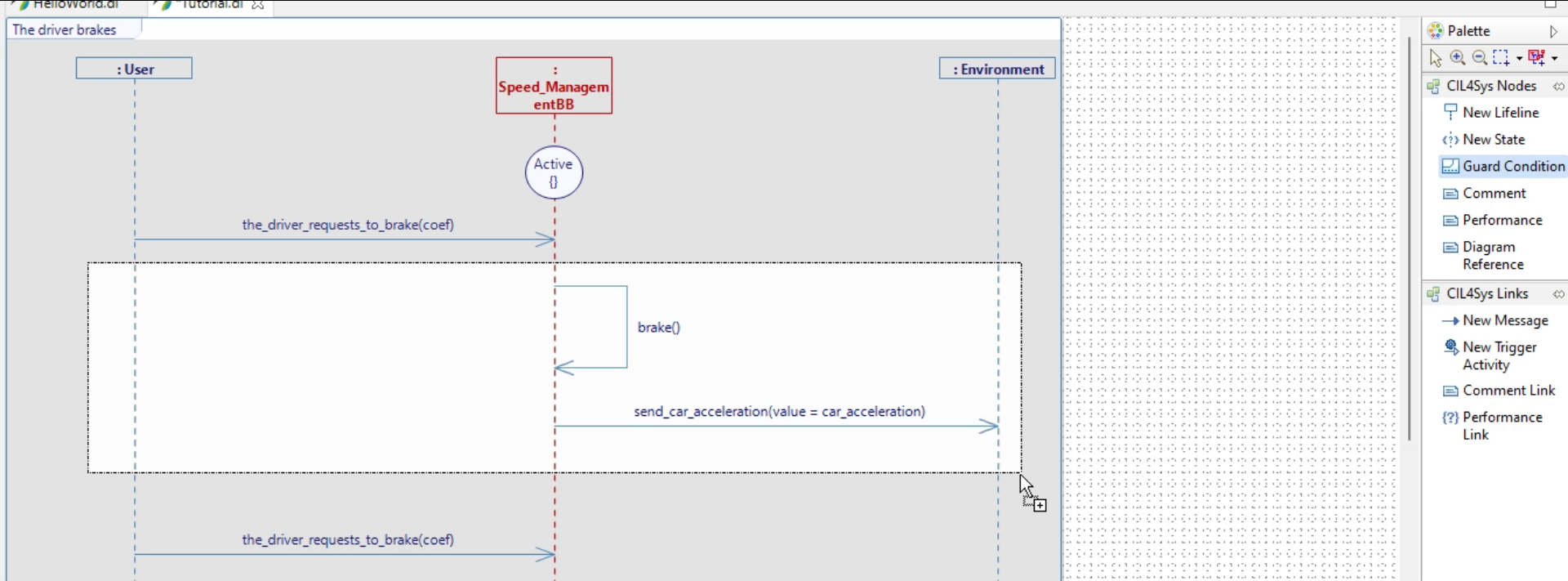

Drag&Drop a Guard Condition on the diagram

Choose the trigger the_driver_requests_to_brake
Set the condition as follow

Complete the sequence diagram for the case where the speed is null (refer to previous steps if needed)

Complete the internal activity set_null_acceleration

car_acceleration = 0.0;

Select the user story in the CIL4Sys Overview

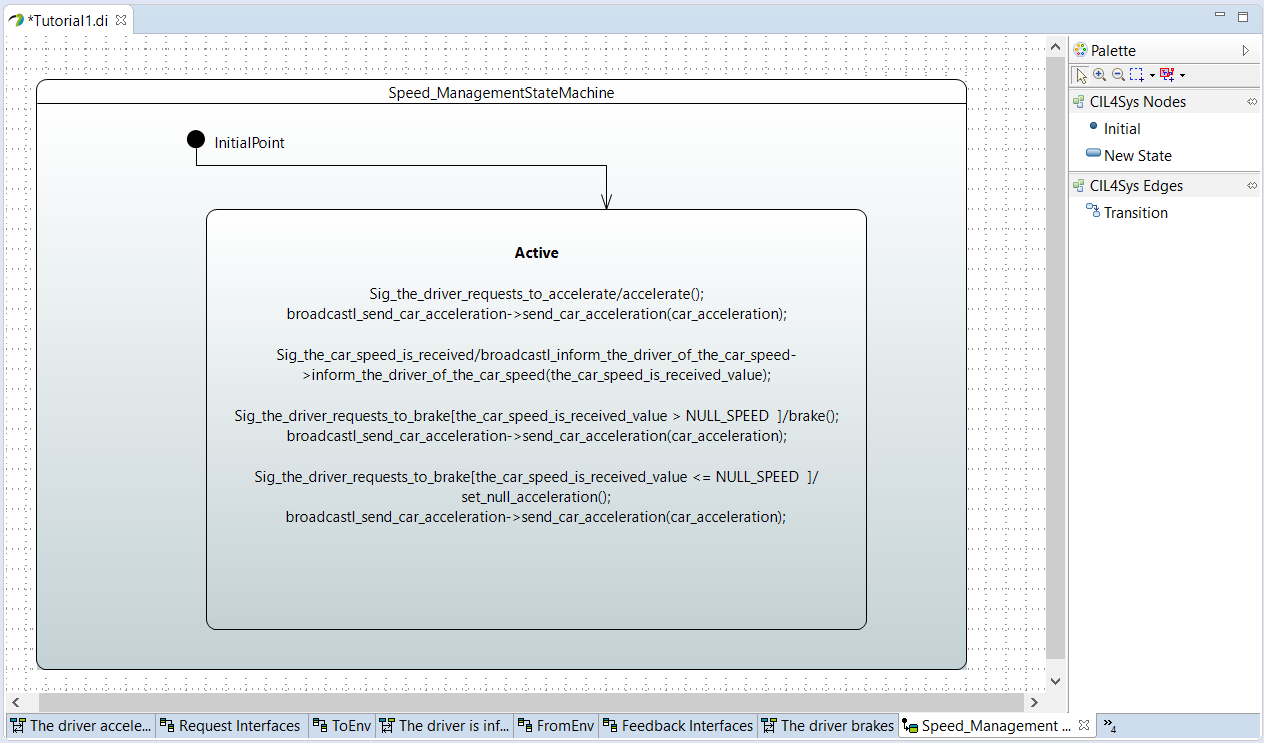

Click on Generate State Machine
Click on Ok in the confirmation dialog box

remarque

TO GO FURTHER
For this simple tutorial we consider only one state (Active). It is possible to introduce several states. You should try it by your own in a blank project:

In a user story, begin with a state “Active” and draw some messages as we did before.
End the user story by another state, “Turbo” for example.
Generate the state machine: you should see the messages you wrote and a condition to go from the state “Active” to the state “Turbo”.
You can also do it the other way around: to go from the state “Turbo” to the state “Active” with another user story.

GENERATE CODE

remarque

If you have the community version of Designer (free version), please build the executable via Hub4Sys as shown on this page

Before generating the code, ensure that the CIL4SysLibs are already part of the project.

If it's not the case, you must add the Libs in File > New > Other... In the new window, select Extra Libraries in the Sim4Sys folder. If you have a Pro access, you can add Sim4Sys Pro - Build Libraries instead:

attention

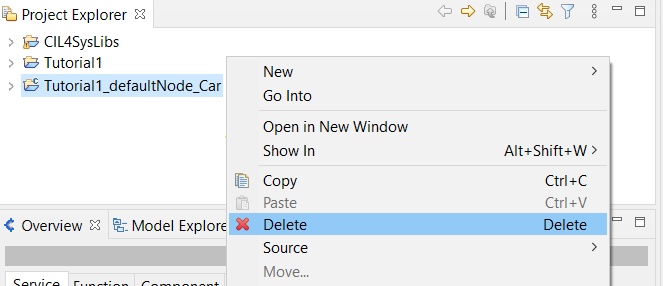

If you've already tried to generate the code without the CIL4SysLibs, you might not be able to compile even after adding the libraries. To reset everything, right-click on the generated code folder, and delete it.

Follow the next steps to generate the code.

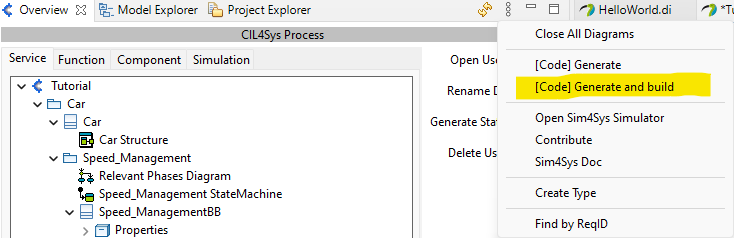

Click on the Overview menu, thanks to the following icon:

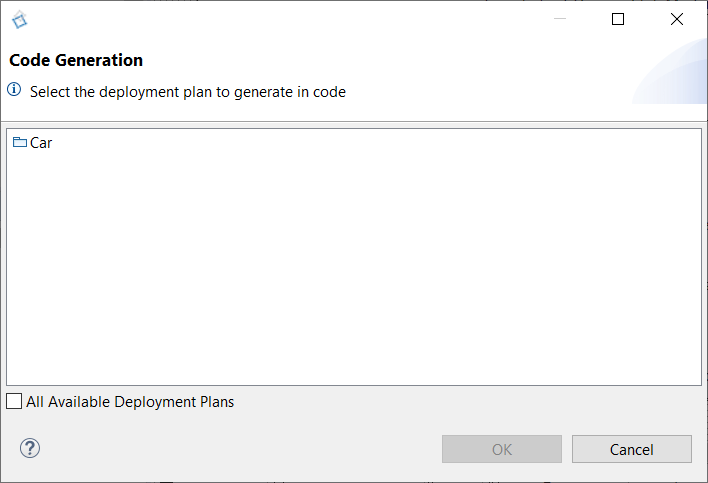

Click on [Code] Generate and build in CIL4Sys Overview
Select Car (or CarMainProduct)
Click on OK

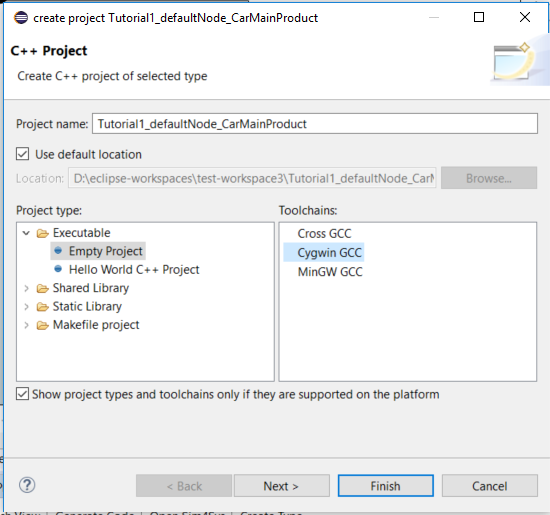

Select Cygwin GCC (Cygwin 64 must be installed, for Windows only)

Click on Finish
Click on OK in the confirmation dialog box
Right-click on the newly created C++ project

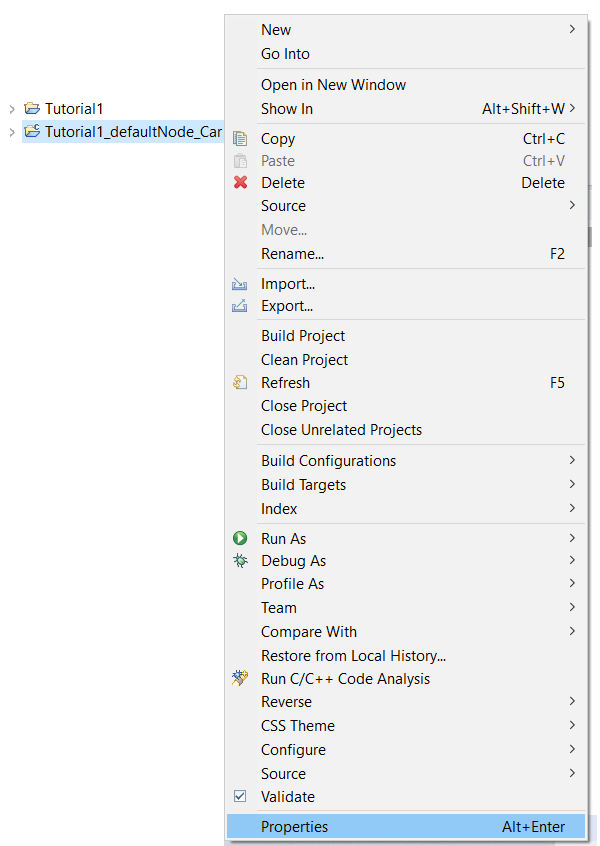

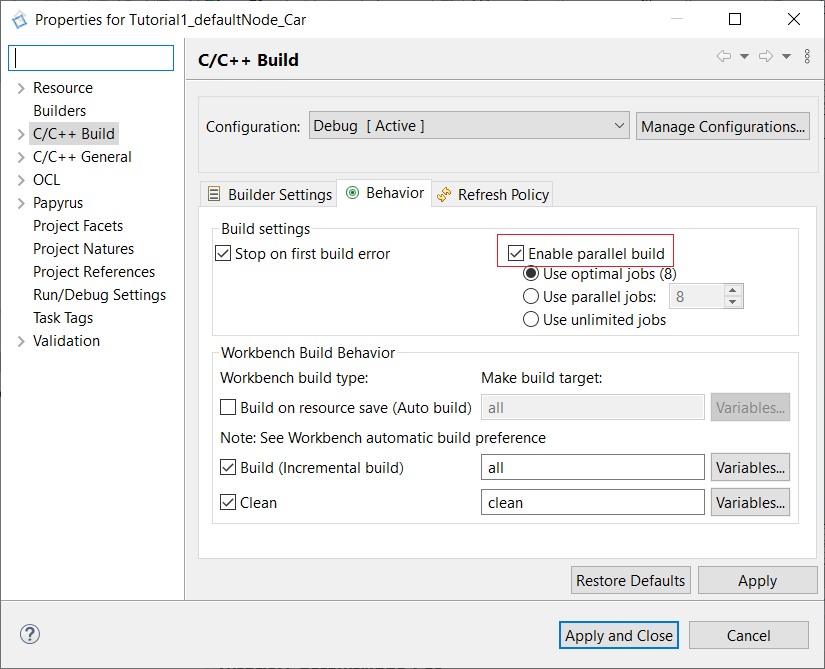

Before building the project, you can right-click on it, and then select Properties. Then go into the C/C++ Build section, and in the Behavior tab. Here you can check Enable parallel Build. Apply and close. Now, the process of building will be much more efficient.

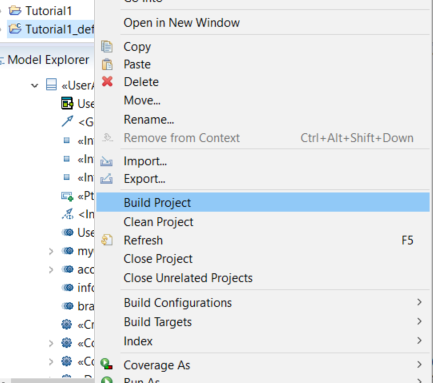

Select Build Project (if the CIL4SysLibs are not imported yet, refers to the previous step before), then we can build our Car project.

In case you have an error with undeclared types, follow the following procedure:
- Go to Window > Preferences
- In Papyrus > C++ Code Generation, check Generate “using namespaces”
- Uncheck Use C++11 class enumerations
- Right-click on C++ project
- Select RunAs > C/C++ Application
- Switch back to your Virtual Bench project.

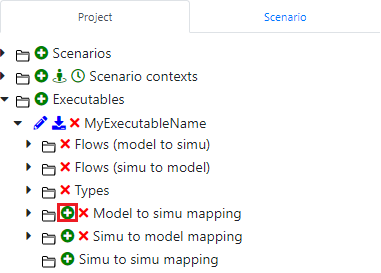

MAPPING (ACCELERATION)

Go on the Sim4Sys Virtual Bench: https://sim4sys.com/
Identify with your login and password
In the Projects tab choose your sandbox project

remarque

If you don't have a sandbox, you can create one by clicking on New Project. Then, in the Project name field, you can write "Sandbox your name" and in the Project URL field, "sandbox".

Then in the sandbox tab, open the Executables folder, in which you can add a new executable by clicking on

Name it and press ok.

Now you need to import types and flows from the model to the virtual bench. To do that, follow the steps in this paragraph.

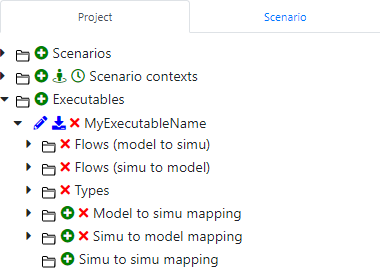

Back in the Executable folder, expand your new executable. For this, you can click on the small black arrow on the left side of the folder, or you can directly double-click on the folder itself.

Add Scenario contexts by clicking on the + sign. For this tutorial, we will need 3 contexts: HMI, Scene2D and Timeline (see here for more information).
Then, add a new scenario

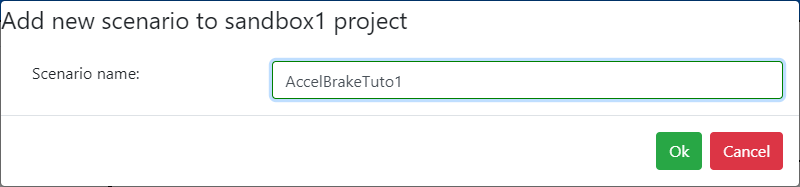

Name it as you wish (accBrake, tuto1...), and press Ok. The new scenario should now be opened.

astuce

To open a scenario you can double click on the scenario's name or click on the eye next to the scenario's name.

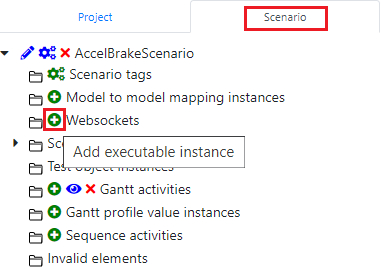

In your scenario tab, Add a new WebSocket.

As an executable, select the one you’ve created before (here AccBrakeTuto1), you can name it as you want, and press Ok.

remarque

Simu to model mapping_ is the part where we manage how the simulation will interact with the model that we’ve created with _Papyrus.

Mapping for the flow the_driver_requests_to_accelerate mapping

Now let’s map the flow the_driver_requests_to_accelerate. To do that, see the following steps:

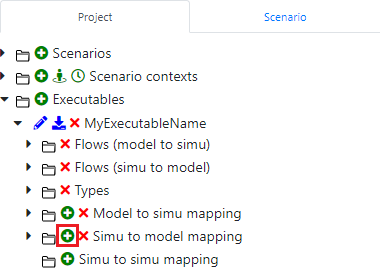

Add a Simu to model mapping element by clicking the + sign:

What we want to do is to create a Timeline action, that is, an element that will maintain one action over a certain period of time. Here we will use this to accelerate.

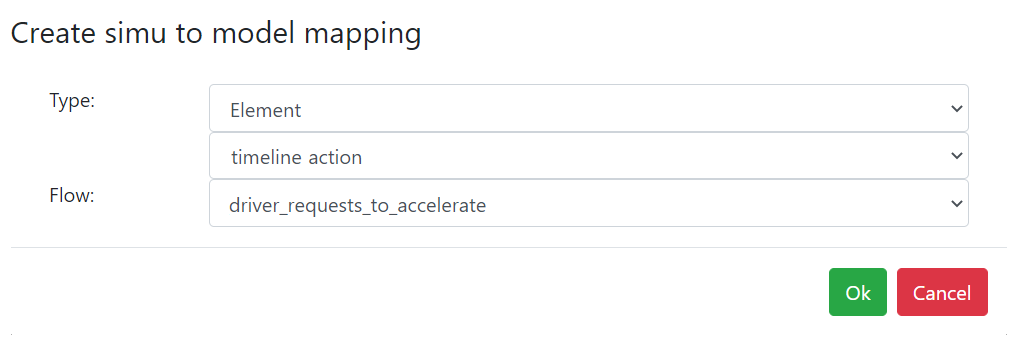

Select the Timeline Action element to interact with the model. And choose the the_driver_requests_to_accelerate flow:

Select the value parameter to be transmitted when the Timeline action will be started:

We need to create the element that will be linked to this mapping.

Switch to Edit Mode if you are in Run Mode, by clicking on the button:

In Edit mode, in the context menu below, select the timeline context (don't forget to add a timeline context before that):

The timeline context is where you can visualize your story through the time and the timeAxis element is already placed in this context.

In this menu Drag&Drop the Timeline background element:

You may have to change the context, then return to the timeline for the layout to refresh.

This will help you visualize the time during the Run.

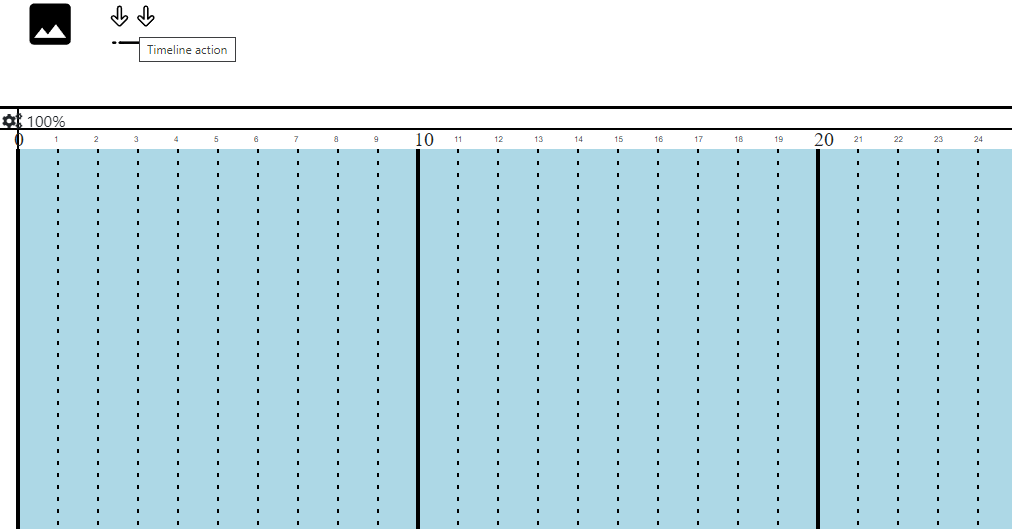

Drag&Drop the Timeline action:

astuce

If you ever want to move an element, you can drag it with your mouse, by pressing the Alt key on your keyboard.

You can also zoom/dezoom on the context by pressing the Alt key and scrolling with the mouse wheel.

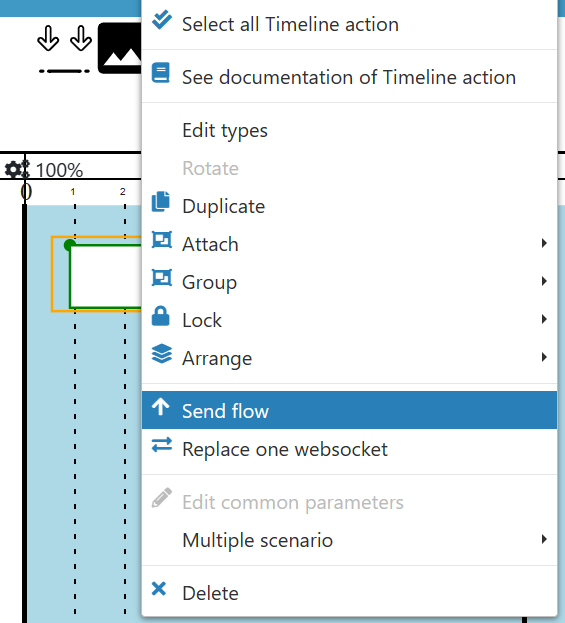

Right-click on the action and select Send flow:

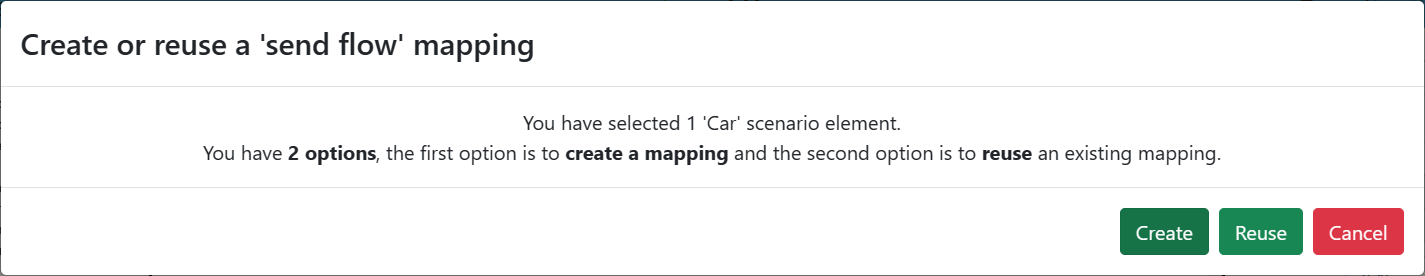

Click on Reuse:

Select the correct items and click on Ok:

Now, we need to define the acceleration value that will be transmitted to the model.

Double click on the Timeline action element,
Check the checkbox as shown below on the Value parameter line and click on the right blue button :

Add a new line by clicking on the + button and fill the value fields with the acceleration coefficient you want to accelerate the car, as shown belown:

Click on Save to Save the modifications of Curve Profile

Mapping for the flow the_car_speed_is_received mapping

We need to create the simu to model mapping for the speed flow sent to the model (the_car_speed_is_received).

We will see another way to create and add a mapping at the same time:

In Edit Mode, in the context menu below, select the scene2D context. This context is a 2D top view representation of the simulation.

In this menu, to the right, Drag&Drop the roadPavement element:

Double click on the element. Click on Edit Path (blue button) to modify the path value as shown below:

Set 800 meters on x direction, as bellow. And click on OK.

Click on Save.
Select Users and Drag&Drop the Car element on the context:

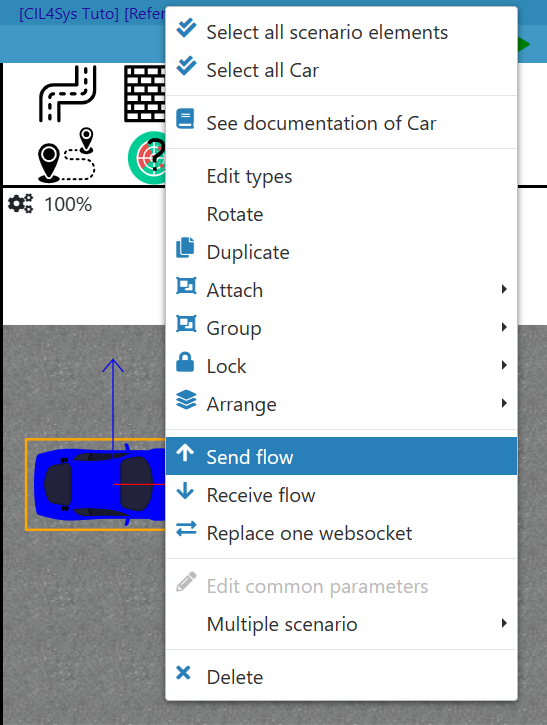

Right-click on the Car element and select Send flow:

Click on Create:

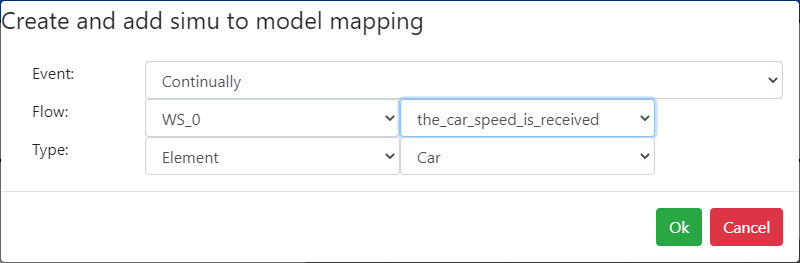

Select the flow the_car_speed_is_received:

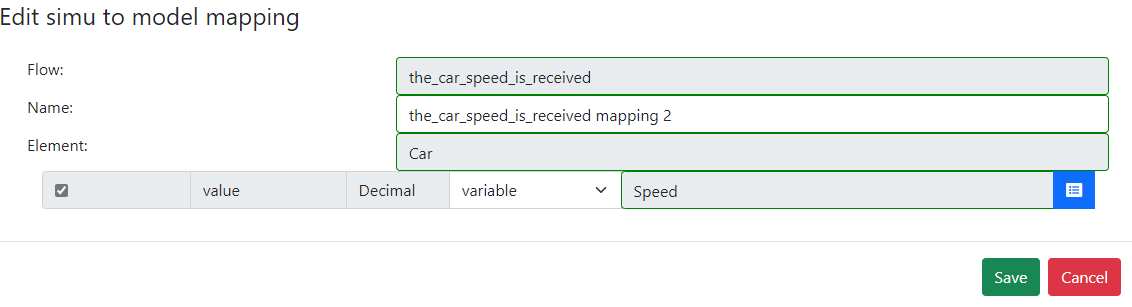

Select the speed parameter to be the data that is transmitted by the flow.

Mapping for the flow send_car_acceleration

Now, we will use the same Car element to receive the car acceleration value from the model. The process is very similar.

Still in the executable folder, find Model to simu mapping.

Add a new one:

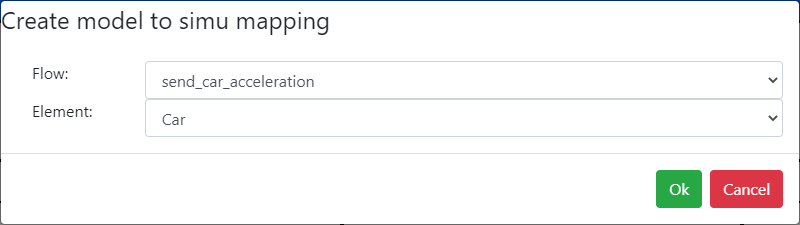

Select the Car element,
Select send_car_acceleration as a flow:

Now, you need to indicate that the value you want to display is the one called value in your flow:

In Edit mode, select the scene2D context,

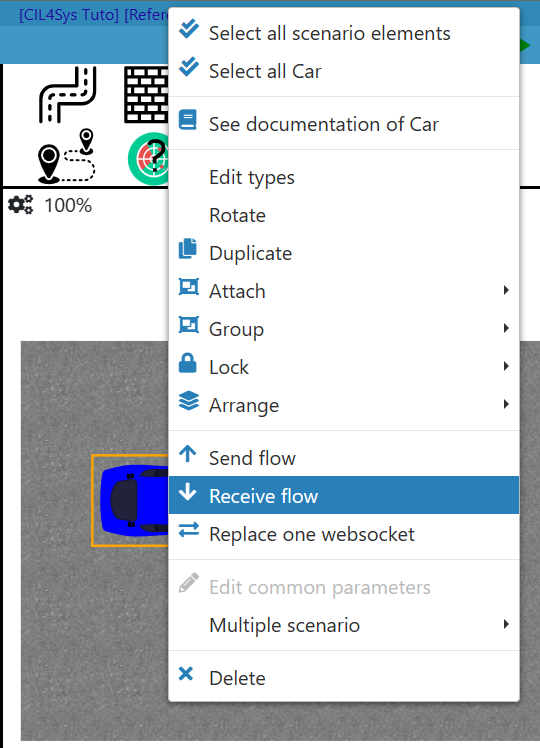

Right-click on the car element and select Receive flow mapping, then click on Reuse:

Click on OK:

Mapping for the flow inform_the_driver_of_the_car_speed

Finally, we will create the other model’s output, a gauge in which we can see the current speed of our car.

Still in the executable folder, find Model to simu mapping.

Add a new one:

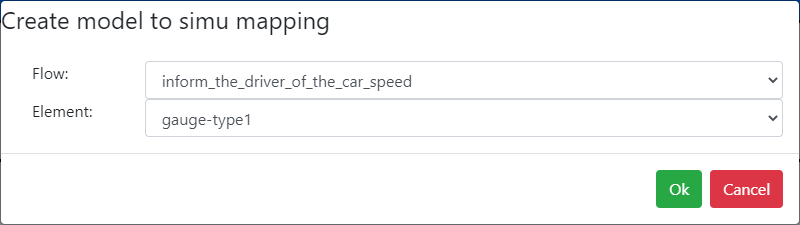

Select the correct element, which is of type gauge,
Select inform_the_driver_of_the_car_speed as a flow:

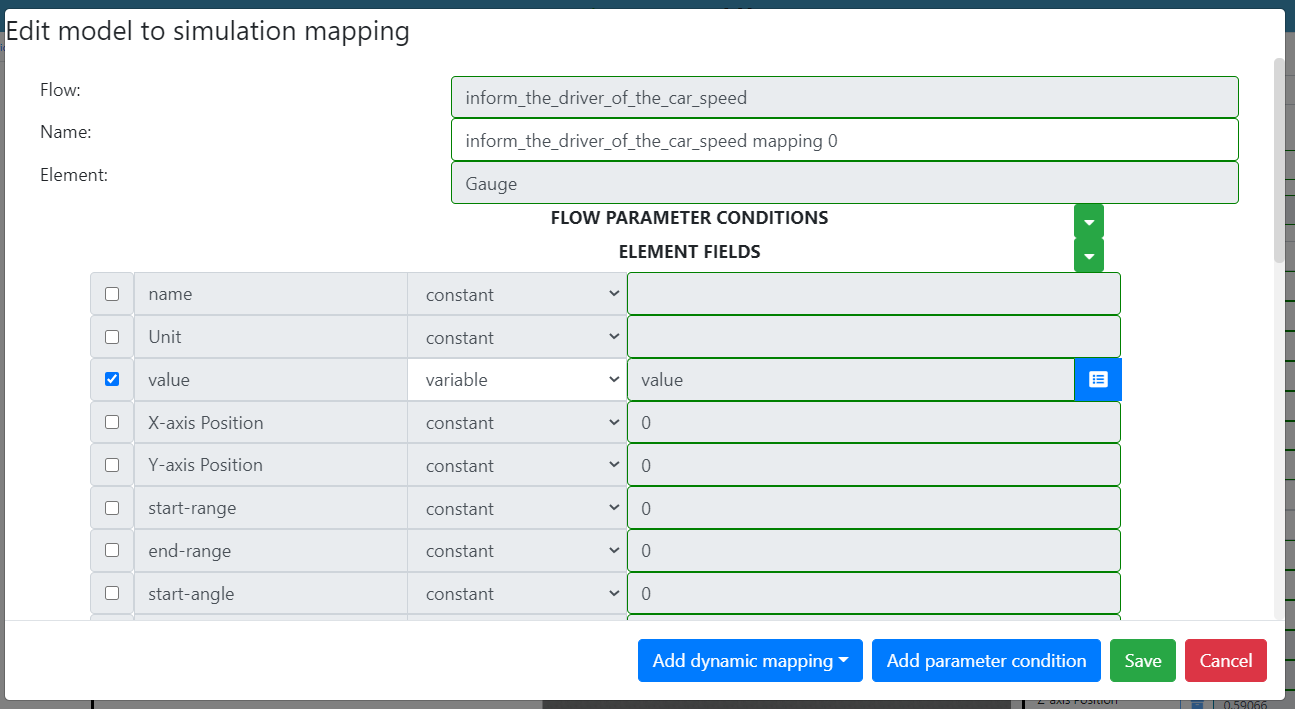

Now, you need to indicate that the value you want to display is the one called value in your flow:

In Edit Mode, select the HMI context. This context is the representation of the control panel of the car:

Drag&Drop the Gauge in the context.

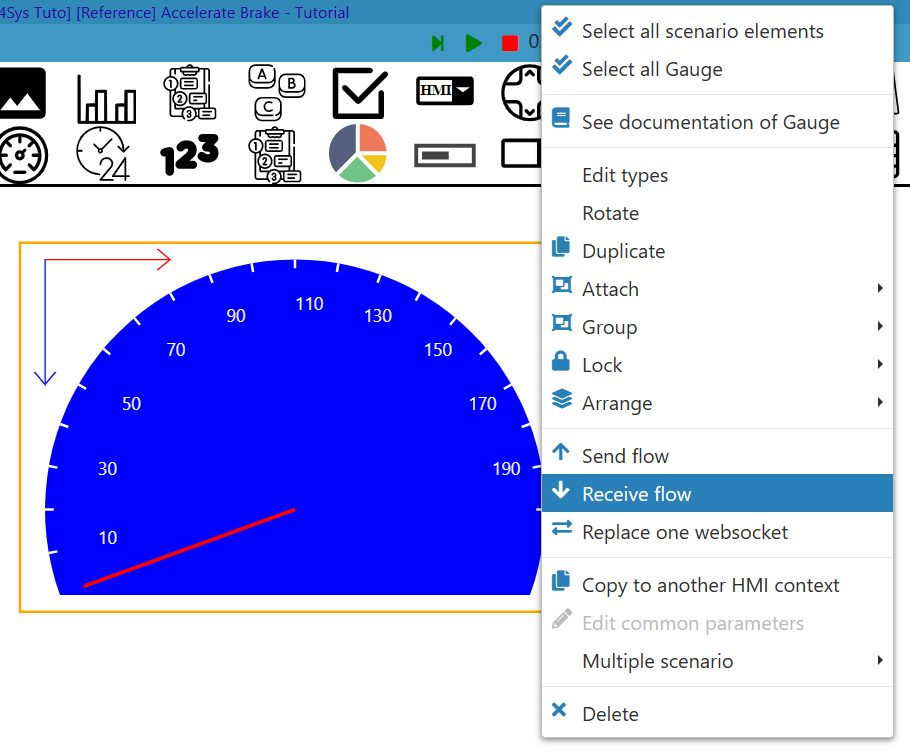

Right-click and select Receive flow:

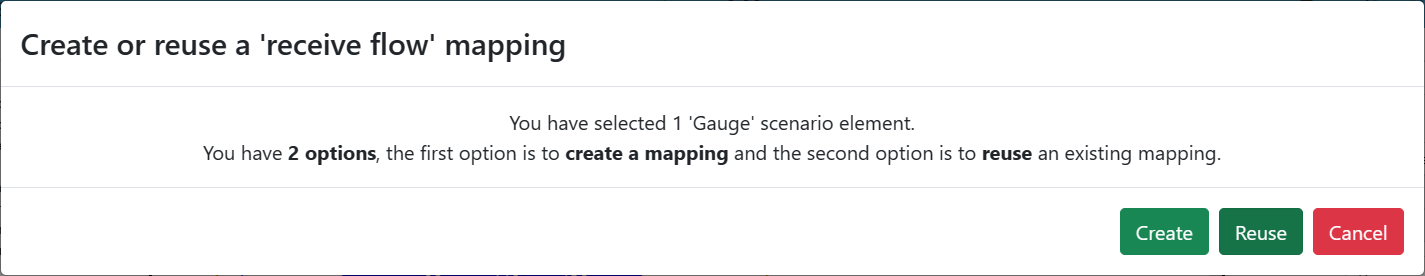

Click on Reuse:

Now everything should be linked. Switch back to Designer.

astuce

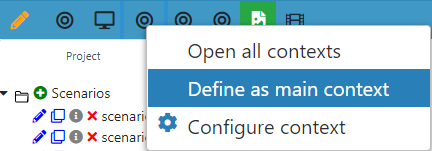

You can set a context as the main context:

Switch to Run mode, then Right click on the desired context and Define as main context

MAKE IT WORK

In Virtual Bench, next to the executable you have created, click on the cog . A pop-up window will appear, type the path of the executable you have generated with Designer. The executable should be in the Debug file of the DefaultNode folder.
Launch this executable, by double-click on it.

attention

When running the executable for the first time, windows might try to prevent it from being executed. In order for it to run now and for each future executions, when the following popup appears, click on "More info", then click on the "Run anyway" button.

Switch to Run Mode by clicking on the pencil button located on the top left of the page.
While your Designer project is running, connect the WebSocket by clicking on websocket connection buttons located on the top-right. It will switch from the red color to the green color.

info

If you don't see the websocket button please change the preference

You can open the contexts where you have added elements for the simulation. Each context will be opened in a dedicated window.

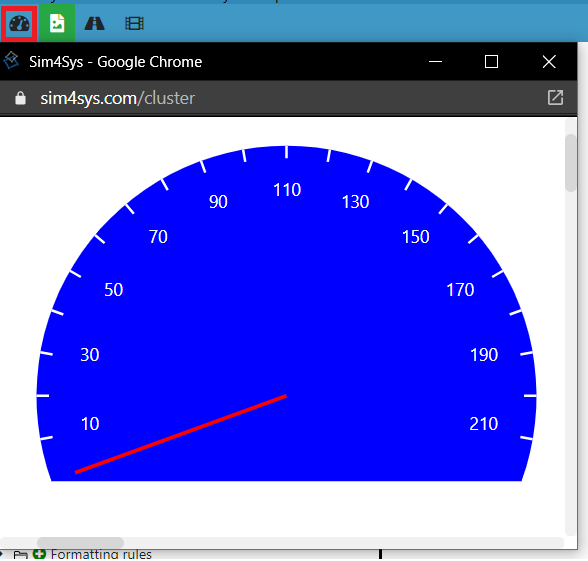

For instance, open the Cluster context. This will open a window.

Click on the Play ► button. It will bring all the opened contexts windows in the foreground automatically.
Follow the timeline, and check if it works, it should speed up.

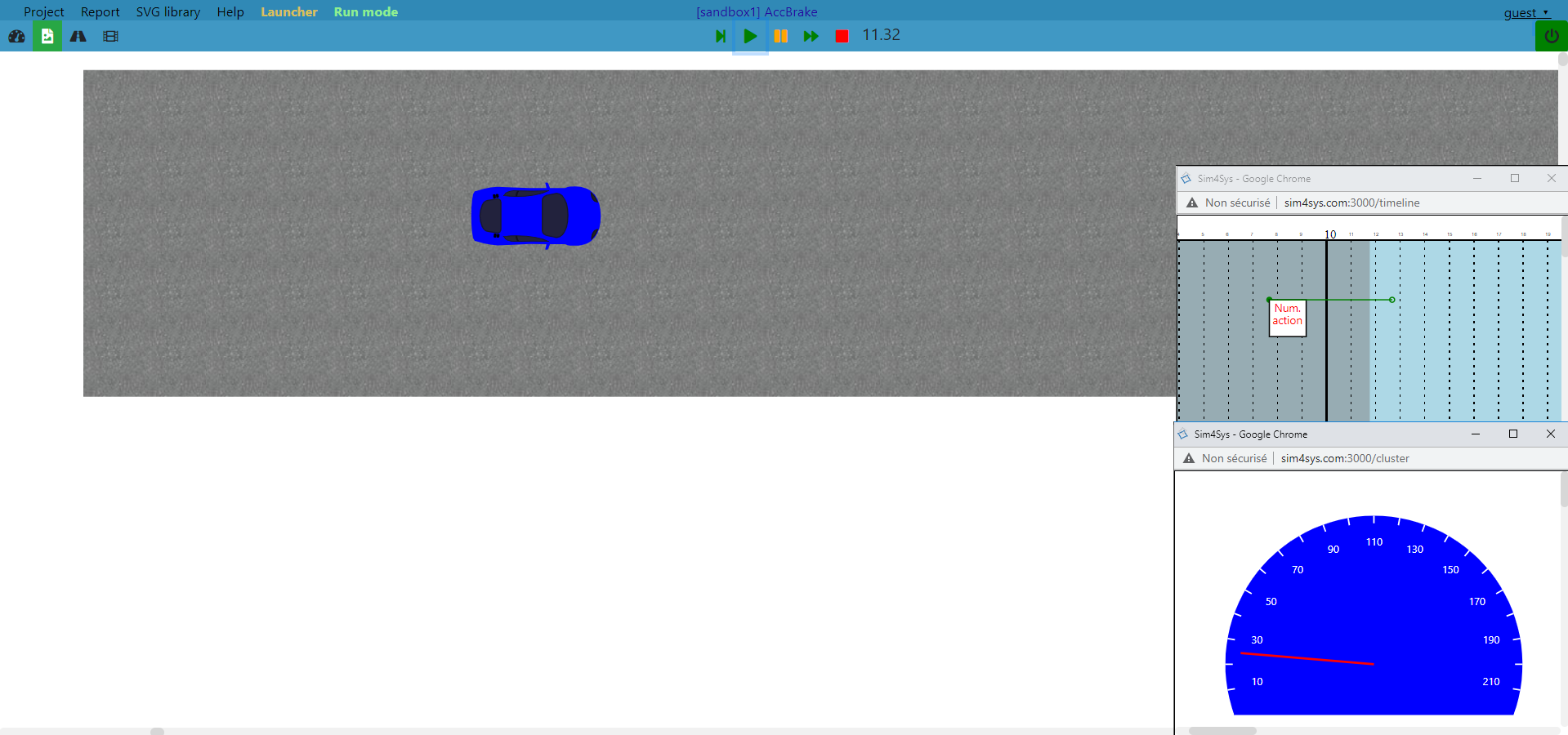

Below is an example with the cluster and timeline contexts opened simultaneously with the scene2D on the main window. You can see that the speed gauge raises and the car is moving on the scene2D context:

MAPPING (BRAKE)

To complete everything, let’s add the brake’s mapping.

Following the same steps as for the accelerator’s mapping:

In your Executable’s folder, add a new Simu to model mapping.
As for the accelerator, select a Timeline action, but select the flow driver_requests_to_brake.

Select the value parameter to be transmitted when the Timeline action will be started.

Now back into the Edit Mode, in the timeline context, Drag&Drop another Timeline action after the previous one to brake, just after the acceleration.
Add the flow driver_requests_to_brake to the new Timeline action.

As for the accelerator, follow the same steps to modify the curve profile of the TimelineAction element, in order to define the decceleration coefficient:

With the upper diagram, we can check if our brake is working, but we won’t be able to check if it will stop at 0, as created in the model. For this to be checked easily, we can lengthen the period of time of our braking Timeline action.

For this, double click on the Timeline action. You should see a menu opening.
Increase the Duration value to make it longer.
Then, press Save.

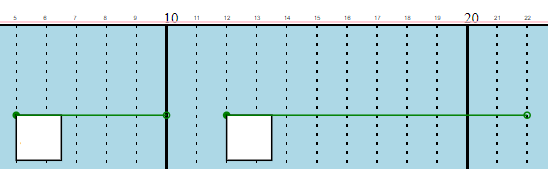

Now, your timeline should look like the picture below:

You can now check everything in Run Mode. Run your papyrus model as in the previous steps. Enable the WebSocket button, press play, and look at both the timeline and the cluster context.

You should notice the acceleration, the deceleration, and the needle stopping at 0. In case this part is not managed, the speed will be negative and will result in displaying the absolute speed (the gauge will therefore display an increasing speed after hitting zero while braking). If it just stops at 0, it works.

PRESENTATION​

Prerequisites​

News skills that you will acquire​

Duration​

CREATE A MODEL​

CREATE A PROJECT​

CREATE A SERVICE SPEED MANAGEMENT​

ADD A LIFE PHASE TO A SERVICE​

CREATE A SIMPLE USE CASE​

CREATE A USER STORY IN A USE CASE​

COMPLETE THE USER STORY​

USECASE "INFORM OF CAR SPEED"​

USECASE "BRAKE"​

GENERATE CODE​

MAPPING (ACCELERATION)​

Mapping for the flow the_driver_requests_to_accelerate mapping​

Mapping for the flow the_car_speed_is_received mapping​

Mapping for the flow send_car_acceleration​

Mapping for the flow inform_the_driver_of_the_car_speed​

MAKE IT WORK​

MAPPING (BRAKE)​

PRESENTATION

Prerequisites

News skills that you will acquire

Duration

CREATE A MODEL

CREATE A PROJECT

CREATE A SERVICE SPEED MANAGEMENT

ADD A LIFE PHASE TO A SERVICE

CREATE A SIMPLE USE CASE

CREATE A USER STORY IN A USE CASE

COMPLETE THE USER STORY

USECASE "INFORM OF CAR SPEED"

USECASE "BRAKE"

GENERATE CODE

MAPPING (ACCELERATION)

Mapping for the flow the_driver_requests_to_accelerate mapping

Mapping for the flow the_car_speed_is_received mapping

Mapping for the flow send_car_acceleration

Mapping for the flow inform_the_driver_of_the_car_speed

MAKE IT WORK

MAPPING (BRAKE)
