Invalid elements

Some elements of Virtual Bench may become invalid, due to:

• updating a XML file, following the modification of a Type or a Flow in a model,
• missing or erroneous parameter value in certain elements (have a look on the bellow example).

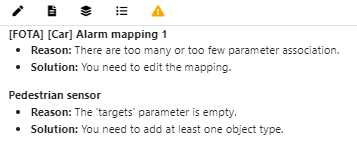

The list of Invalid Elements can be found in the right side view, in a tab of the same name .

For each one, an explanation of the problem and a solution are offered. You can focus on the element concerned, in the left side view, by clicking on it.

It is strongly recommend to solve these problems before executing the scenarios (to avoid any unexpected crashes of the executable).

For example, a "simu to model" mapping is defined as invalid if the user has not associated a parameter or a value for each parameter of the flow that must be sent.
