Bar Chart

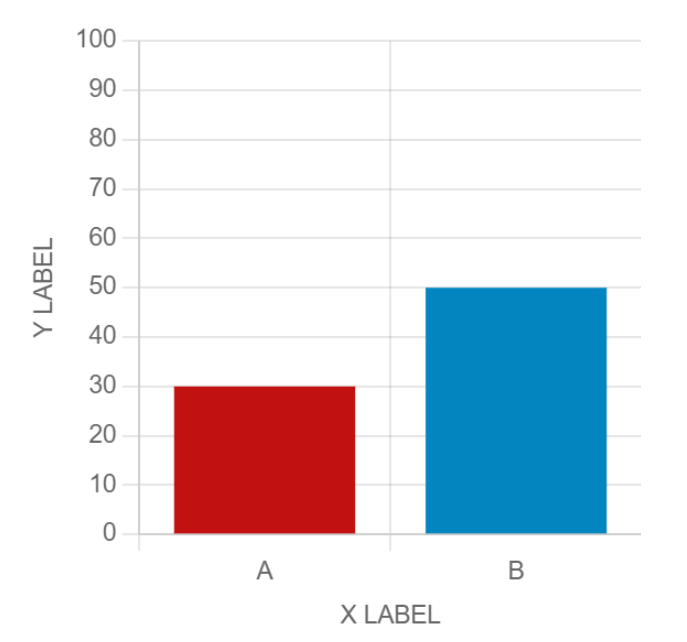

This element is a basic bar chart. It is useful to compare and display assigned values in your scenario.

This element must be used with HMI context.

Icon

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis position	✔️	✔️	Position of the element's on the X-axis.	px	Integer number
Y-axis position	✔️	✔️	Position of the element's on the Y-axis.	px	Integer number
Width	✔️	✔️	Maximal length of the element on the X-axis.	px	Decimal number
Height	✔️	✔️	Maximal width of the element on the Y-axis.	px	Decimal number
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
X label	✔️	✔️	Title informing of what is represented on the X axis.	-	Text
Y label	✔️	✔️	Title informing of what is represented on the Y axis.	-	Text
Log Y Axis	✔️	✔️	Whether Y axis scale needs to be a linear (❌) or a logarithmic (✔️) scale. Presenting data on a logarithmic scale can be helpful when the data covers a large range of values.	-	Enumeration(✔️,❌)
Max Y value	✔️	❌	Maximum value displayed on the Y axis.	Unit param	Decimal number
Min Y value	✔️	❌	Minimum value displayed on the Y axis.	Unit param	Decimal number
Column Name	✔️	❌	Each column of your bar chart, split with the ";" character. Example: A;B;C	-	Text
Angle	✔️	✔️	Angle of rotation of the element compared to its initial position.	degree	Decimal number

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

Add slice on pie chart or update it if it already exist.

Show/Hide all parameters

parameters	description	unit	type
X Value	Bar id to add/update.	-	Text
Y Value	The value of the bar.	Unit param	Decimal number
Color	Color of the bar. This parameter can be edited.	-	Hexadecimal

Clear one bar of bar chart element

Show/Hide all parameters

parameters	description	unit	type
X Value	Bar id to clear.	-	Text

Clear all bars on Bar Chart element.

No parameters for this triggered behaviour

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
At initialization	The bar chart can send information to the model once at initialization
Continually	The bar chart can send information to the model continuously
