Table
This element is a basic table. The graphic origin of the Table corresponds to the upper left corner the Table. The particularity of this element is you can add formatting rules.
This element must be used with HMI context.
Icon

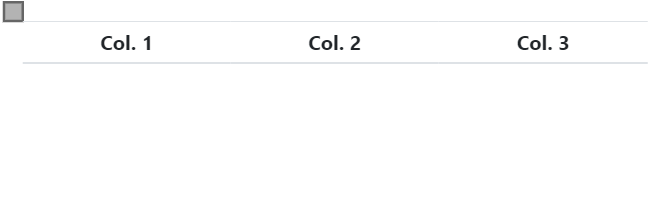

HMI Representation
External parameters
Show/Hide all parameters
| parameter | editable via "Parameter" tab | updatable via a mapping | description | unit | type |
|---|---|---|---|---|---|
| Column titles | ✔️ | ✔️ | List of column titles. To have several columns, you must separate the names with the character ';' | - | Text |
| Style | ✔️ | ✔️ | CSS style of the element. You can change here parameters of the elements that are not already present in other fields. Choose a preset definition. | - | CSS |
| X-axis position | ✔️ | ✔️ | Position of the element on the X-axis. | px | Integer number |
| Y-axis position | ✔️ | ✔️ | Position of the element on the Y-axis. | px | Integer number |
| Width | ✔️ | ✔️ | Length of the element on the X-axis. | px | Integer number |
| Height | ✔️ | ✔️ | Width of the element on the Y-axis. | px | Integer number |
| Visibility | ✔️ | ✔️ | This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group. | - | Enumeration (visible, hidden, inherit) |
| Coordinate cell column clicked | ❌ | ❌ | - | - | Decimal number |
| Coordinate row column clicked | ❌ | ❌ | - | - | Decimal number |
| Row id clicked | ❌ | ❌ | - | - | Decimal number |
| Angle | ✔️ | ✔️ | Angle of rotation of the element compared to its initial position. | degree | Decimal number |
Triggered behaviours
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all triggered behaviours
Destroy
At the reception of the flow, the element is destroy.
No parameters for this triggered behaviour.
Add row
At the reception of the flow, a row is added with its cells.
| parameters | description | unit | type |
|---|---|---|---|
| row | Row to add | - | Complex |
| cells | Cells inside added row | - | List of Complex |
Add multiple rows
At the reception of the flow, rows are added with their cells.
| parameters | description | unit | type |
|---|---|---|---|
| rows | Rows to add | - | Complex |
| List of cells | List of cells inside added rows | - | List of Complex |
Clear table
At the reception of the flow, the values of table on scene are cleared.
Events
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all events
| event | description |
|---|---|
| On Parameter Value Changed | The element can send information to the model when the value of the selected parameter has changed |
| At initialization | The table can send information to the model once at initialization |
| Cell clicked | The table can send information to the model, when a cell is clicked |
| Continually | The table can send information to the model continuously |
