Pedestrian crossing

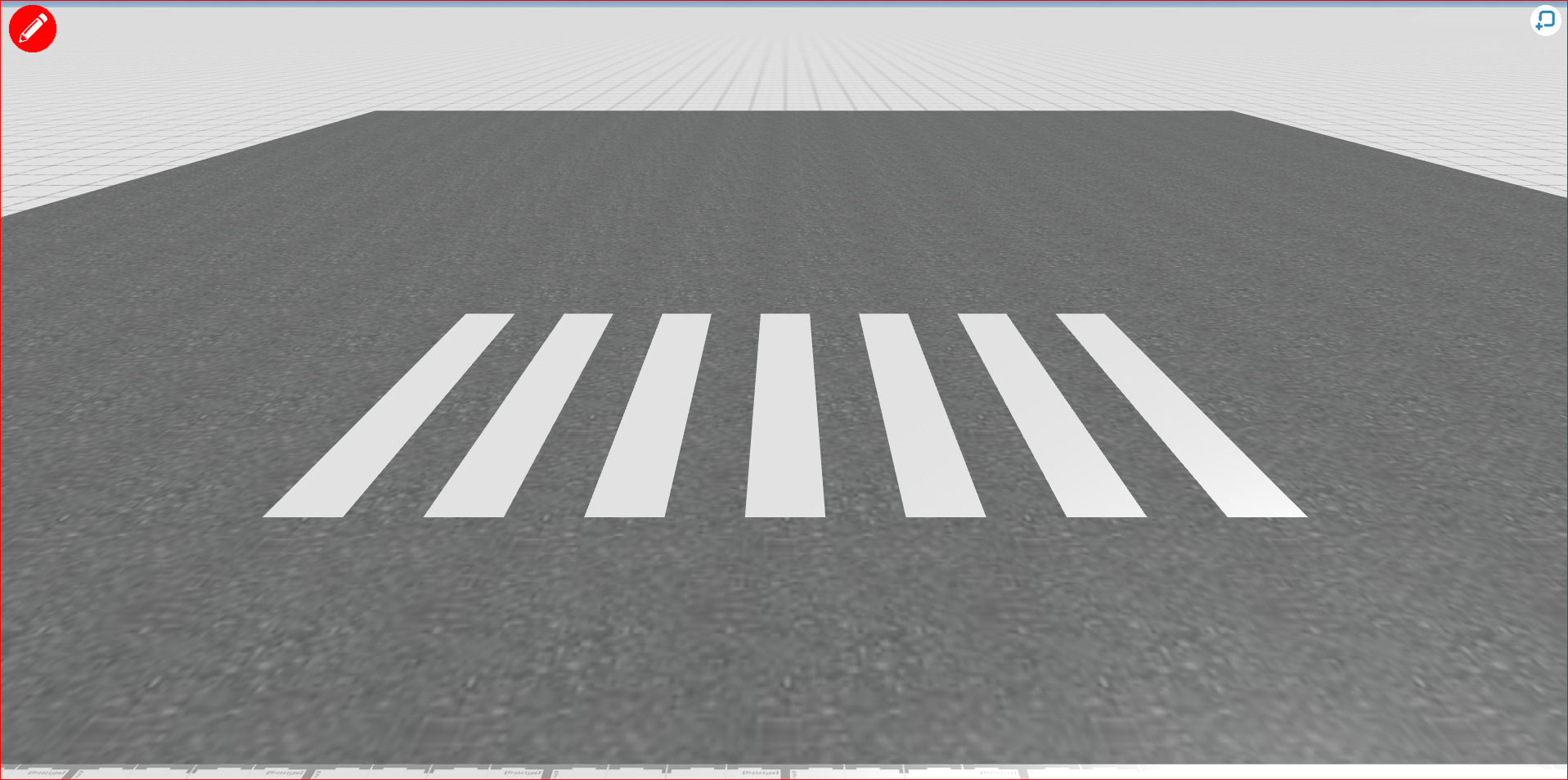

This element is a basic pedestrian crossing. The graphic origin of the Pedestrian crossing corresponds to the geometric center of the Wall.


Is an equipment	❌
Can have equipment	❌

This element must be used with 2D scene context.

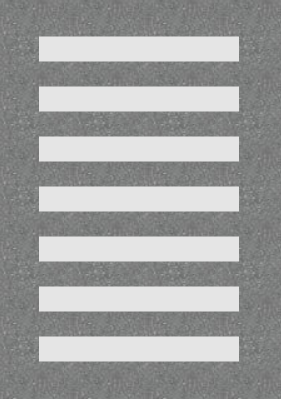

Icon

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis position	✔️	✔️	Position of the element on the X-axis.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis.	meter	Decimal number
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Z-axis angle	✔️	✔️	Angle of rotation of the element compared to its initial position.	degree	Decimal number
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
Size on X-axis	❌	❌	Total distance of the path on X-axis.	meter	Decimal number
Size on Y-axis	❌	❌	Total distance of the path on Y-axis.	meter	Decimal number
longitude coordinate	❌	❌	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	❌	❌	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
At initialization	The pedestrian crossing can send information to the model once at initialization
Continually	The pedestrian crossing can send information to the model continuously
