Wagon for truck

This element is a wagon to transport truck by rail.

Is an equipment	❌
Can have equipment	❌

This element must be used with 2D scene context.

Icon

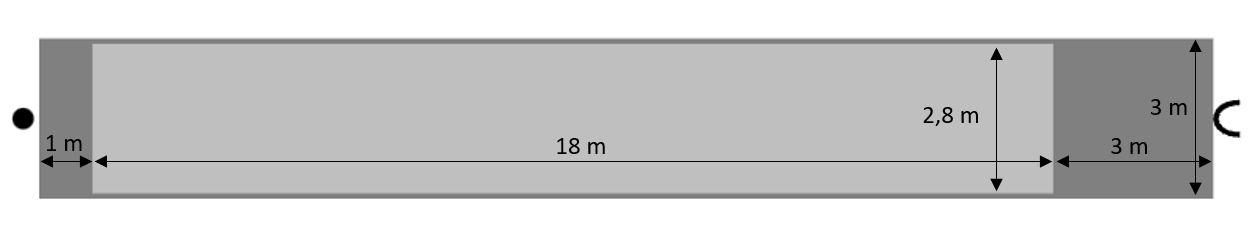

2D Representation

3D Representation

External parameters

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
Color	✔️	✔️	Color of the element. This parameter can be edited.	-	Hexadecimal
X-axis position	✔️	✔️	Position of the element on the X-axis of the scene in which it is located.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis of the scene in which it is located.	meter	Decimal number
Z-axis angle	✔️	✔️	Angle of the element on the Z-axis of the scene in which it is located.	degree	Decimal number
Speed	✔️	✔️	Speed on the X-axis of the element. This parameter can be profile.	kilometers per hour	Decimal number
Accel. coeff.	✔️	✔️	Acceration on the X-axis of the element.	kilometers per hour squared	Decimal number
Trajectory	✔️	❌	Trajectory of the scene that the element will follow.	-	Enumeration
Curvilinear position	✔️	✔️	Position on the trajectory.	meter	Decimal number
Front distance	❌	❌	Distance with the front wagon or locomotive when detected.	meter	Decimal number
Wagon is hooked	❌	❌	This parameter shows if the wagon is hooked.	-	Enumeration (✔️, ❌)
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
Length	❌	❌	Length of the element.	meter	Decimal number
Width	❌	❌	Width of the element.	meter	Decimal number
Z-axis position	❌	❌	Position of the element on the Z-axis of the scene in which it is located.	meter	Decimal number
Height	❌	❌	Height of the wagon.	meter	Decimal number
longitude coordinate	❌	❌	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	❌	❌	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

Triggered behaviours

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

Destroy

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

Stuck truck

At the reception of the flow, the wagon stucks the truck.

Release truck

At the reception of the flow, the wagon releases the truck.

Hook wagon

At the reception of the flow, the wagon will hook to the front locomotive or wagon. The hook working if the distance is between 0 and 0.2 meters.

Unhook wagon

At the reception of the flow, the wagon will unhook to the front locomotive or wagon.

Update Trajectory

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
Reset Curvilinear Position	❌	✔️	Update position on the trajectory.	meter	Decimal number
Trajectory Name	❌	✔️	Name of the trajectory that the car will follow.	-	TextType

Events

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
At initialization	The wagon for truck can send information to the model once at initialization
Continually	This event is triggered at each cycle of the Virtual Bench
Presence of truck	This event is constantly triggered when a truck is detected on the wagon
Absence of truck	This event is constantly triggered when no trucks are detected on the wagon
Front presence	This event is constantly triggered when a locomotive or wagon is detected within 10 meters
Start front detection	This event is triggered once when a locomotive or wagon starts being detected within 10 meters
Stop front detection	This event is triggered once when a locomotive or wagon stops being detected within 10 meters
Stuck success	This event is triggered when the stuck of truck is successful
Stuck failure	This event is triggered when the stuck of truck failed
Hook success	This event is triggered when the hook of wagon is successful
Hook failure	This event is triggered when the hook of wagon failed
