Functional conveyor

This element conveyes items from a machine to another machine.

This element must be used with 2D scene context.

Icon

Functional conveyor on scene 2D

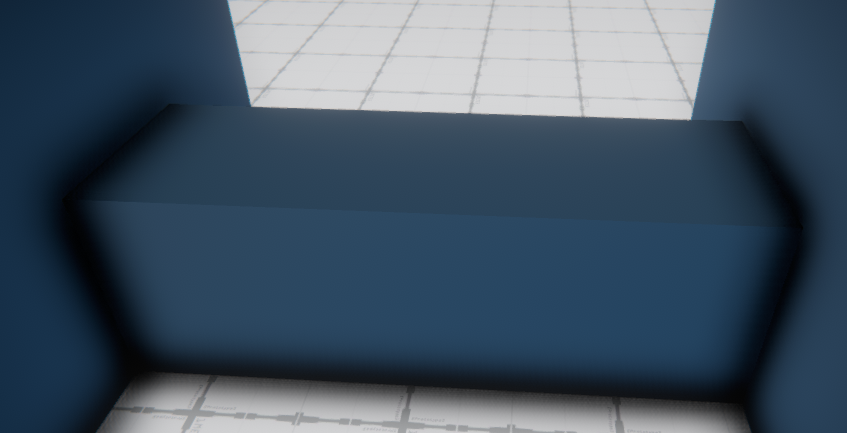

Functional conveyor on scene 3D

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis position	✔️	✔️	Position of the element on the X-axis.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis.	meter	Decimal number
iconX	✔️	❌	Relative position of the icon, from the origin of the attache element, on the X-axis.	meter	Decimal number
iconY	✔️	❌	Relative position of the icon, from the origin of the attache element, on the Y-axis.	meter	Decimal number
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
Conveyor width	✔️	✔️	Conveyor width	meter	Decimal number
Path	✔️	✔️	Path consisting of jointed lines. The jointures can be straight or curved.	-	Path type
Speed SetPoint	✔️	✔️	Speed of the conveyor belt	meter per second	Decimal number

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
Continually	The functional_conveyor can send information to the model continuously
At initialization	The functional_conveyor can send information to the model once at initialization
