Parking gate

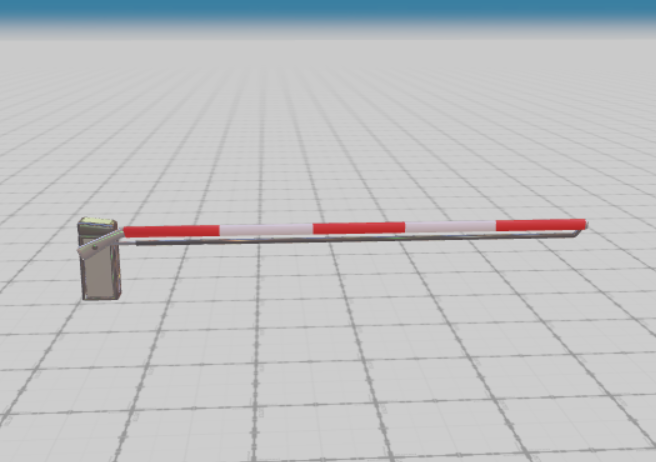

This element is a basic parking gate layout.


Is an equipment	❌
Can have equipment	❌

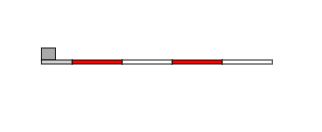

This element must be used with 2D scene context.

Icon

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis position	✔️	❌	Position of the element on the X-axis.	meter	Decimal number
Y-axis position	✔️	❌	Position of the element on the Y-axis.	meter	Decimal number
Z-axis angle	✔️	❌	Angle of rotation of the element compared to its initial position.	degree	Decimal number
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
Gate status	✔️	❌	Position of the parking gate	opened/closed	Enum
Gate length	✔️	❌	The length of the parking gate.	meter	Decimal number
longitude coordinate	❌	❌	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	❌	❌	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

This triggered behaviour allows to open the gate.

parameters	description	unit	type
Opening time	Time to open the gate.	Seconds	Decimal

This triggered behaviour allows to close the gate.

parameters	description	unit	type
Closing time	Time to close the gate.	Seconds	Decimal

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
Reached closed state	This event is triggered when the parking gate has just reached its closed position.
Reached opened state	This event is triggered when the parking gate has just reached its opened position.
