Road Line
This element is a basic road line layout. The graphic origin of the Road Line corresponds to the beginning of its path. The particularity of Road Line elements is that it can take different pattern: macadam, pavers, roadside, wall and water.
| Is an equipment | ❌ |
| Can have equipment | ❌ |
This element must be used with 2D scene context.
Icon
2D Representations
| Pattern | 2D Representation |
|---|---|

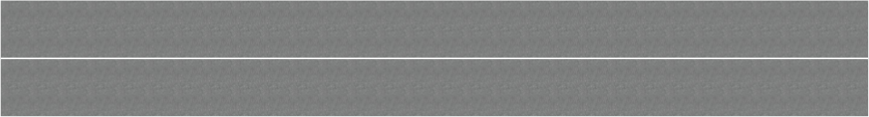

| T0 |  |

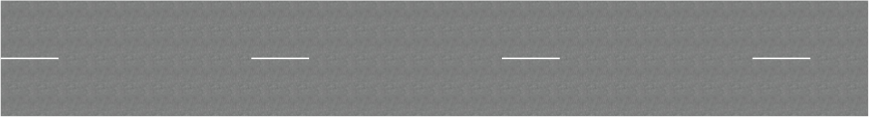

| T1 |  |

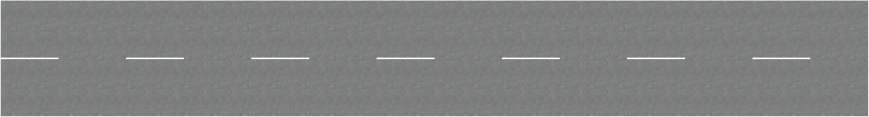

| T2 |  |

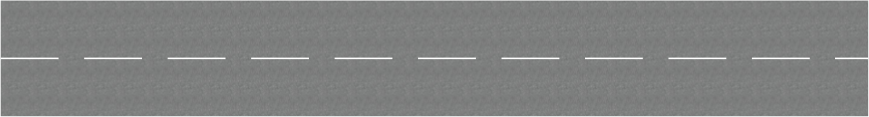

| T3 |  |

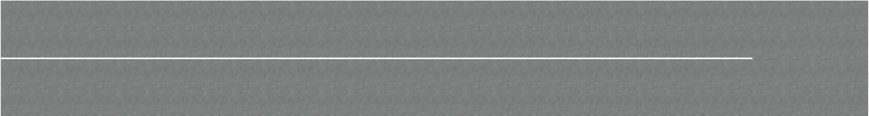

| T4 |  |

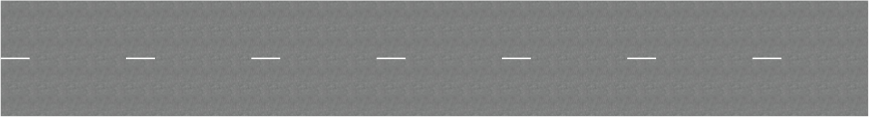

| Tp1 |  |

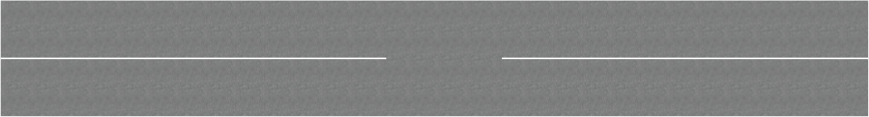

| Tp3 |  |

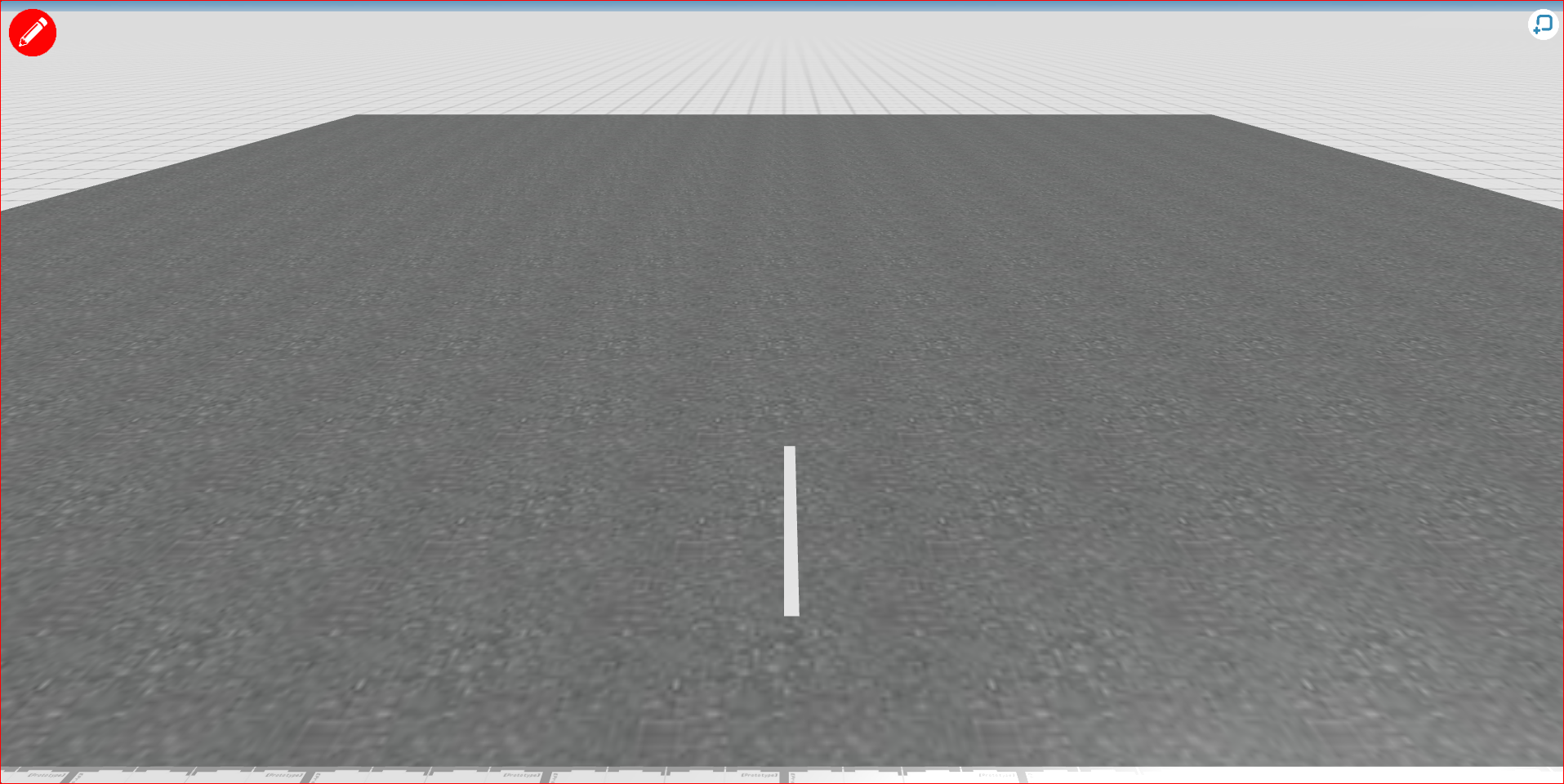

3D Representation
External parameters
Show/Hide all parameters
| parameter | editable via "Parameter" tab | updatable via a mapping | description | unit | type |
|---|---|---|---|---|---|
| Path width | ✔️ | ✔️ | Width of the element among its path. | meter | Decimal number |
| X-axis position | ✔️ | ✔️ | Position of the element on the X-axis. | meter | Decimal number |
| Y-axis position | ✔️ | ✔️ | Position of the element on the Y-axis. | meter | Decimal number |
| Z-axis angle | ❌ | ❌ | Angle of rotation of the element compared to its initial position. | degree | Decimal number |
| Color | ✔️ | ✔️ | Color of the element. This parameter can be edited. | - | Hexadecimal |
| Pattern | ✔️ | ✔️ | This parameter allows you to choose the pattern of the road line. | - | Enumeration (T0, T1, T2, T3, T4, Tp1, Tp3) |
| Path | ✔️ | ✔️ | Path of the element on the X-axis and Y-axis. This parameter is editable. | meters | Array of relative distances |
| Visibility | ✔️ | ✔️ | This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group. | - | Enumeration (visible, hidden, inherit) |
| Threshold zoom out | ✔️ | ❌ | Zoom level from which its representation on the scene is no longer modified. | % | Decimal number |
| Size on X-axis | ❌ | ❌ | Total distance of the path on X-axis. | meter | Decimal number |
| Size on Y-axis | ❌ | ❌ | Total distance of the path on Y-axis. | meter | Decimal number |
| longitude coordinate | ❌ | ❌ | Automatically calculated longitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
| latitude coordinate | ❌ | ❌ | Automatically calculated latitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
Triggered behaviours
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all triggered behaviours
Destroy
At the reception of the flow, the element is destroy.
No parameters for this triggered behaviour.
Events
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all events
| event | description |
|---|---|
| On Parameter Value Changed | The element can send information to the model when the value of the selected parameter has changed |
| At initialization | The road line can send information to the model once at initialization |
| Continually | The road line can send information to the model continuously |
