Polysensor

This element is a basic sensor layout. It is attached to roadusers so they can detect other elements on the scene2D. The particularity of this element is in Edit mode, the detection field is represented by dotted line, in order to be able to select elements under this field.

Is an equipment	✔️
Can have equipment	❌

This element must be used with 2D scene context.

Icon

2D Representations

Polysensor in Edit Mode	Polysensor in Run Mode

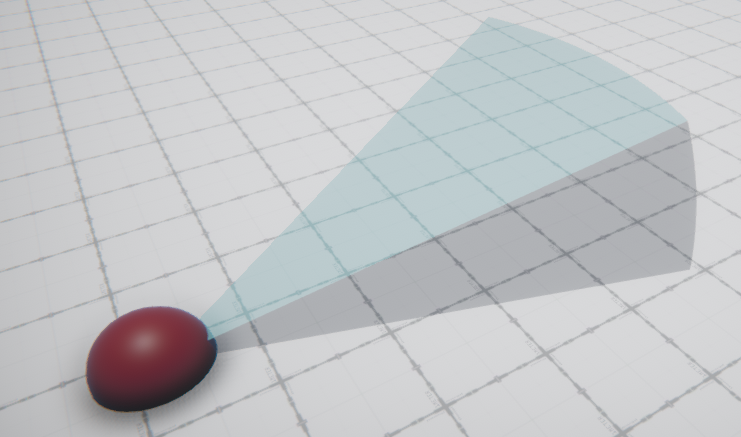

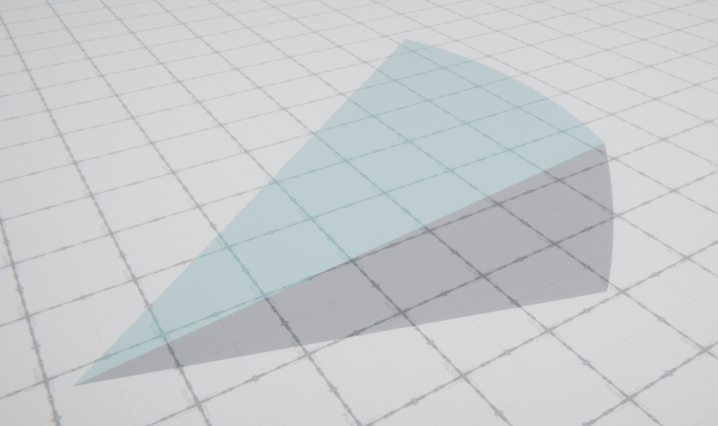

3D Representation

Polysensor in Edit Mode	Polysensor in Run Mode

External parameters

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis relative position	✔️	❌	Relative position of the element, from its attached element, on the X-axis.	meter	Decimal number
Y-axis relative position	✔️	❌	Relative position of the element, from its attached element, on the Y-axis.	meter	Decimal number
Z-axis relative position	✔️	❌	Relative position of the element, from its attached element, on the Z-axis.	meter	Decimal number
Z-axis relative angle	✔️	✔️	Relative angle of the element, from its attached element.	degree	Decimal number
field initial angle	✔️	✔️	Initial angle of the illuminated field on the Z-axis.	degree	Decimal number
field final angle	✔️	✔️	Final angle of the illuminated field on the Z-axis.	degree	Decimal number
X-axis relative incidence angle	✔️	✔️	Angle of sensor relative to its owner.	degree	Decimal number
field initial incidence angle	✔️	✔️	Angle value of the detection area initial edge relative to owner orientation.	degree	Decimal number
field final incidence angle	✔️	✔️	Angle value of the detection area final edge relative to owner orientation.	degree	Decimal number
Rotation frequency on Z-axis	✔️	✔️	How many rotation sensor can perform in one second.	Hertz	Decimal number
field radius	✔️	✔️	Radius of the illuminated area on the scene in which it is located.	meter	Decimal number
field color	✔️	✔️	Color of the illuminated area on the scene in which it is located. This parameter can be edited.	-	Hexadecimal
iconX	✔️	❌	Relative position of the icon, from the origin of the illuminated field , on the X-axis.	meter	Decimal number
iconY	✔️	❌	Relative position of the icon, from the origin of the illuminated field, on the Y-axis.	meter	Decimal number
targets	✔️	❌	Choose which 2D element or which scenario elements type will be detected	-	List (2D Elements)
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
X-axis position	✔️	✔️	Position of the element on the X-axis.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis.	meter	Decimal number
SizeX	❌	❌	Size of the polysensor on the X-axis.	meter	Decimal number
SizeY	❌	❌	Size of the polysensor on the Y-axis.	meter	Decimal number
Z-axis angle	❌	❌	Angle of rotation of the element compared to its initial position.	degree	Decimal number
Z-axis position	❌	❌	Position of the element on the Z-axis.	meter	Decimal number
Height	❌	❌	Height of the element.	meter	Decimal number
X-axis angle	❌	❌	Angle of the element on the X-axis.	degree	Decimal number
Y-axis angle	❌	❌	Angle of the element on the Y-axis.	degree	Decimal number
List of detection	❌	❌	List of parameters that polysensor must detect. Only available as a variable, during a Send flow mapping creation/modification. See details below for an example with Car detection.	-	Text
longitude coordinate	❌	❌	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	❌	❌	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

Example: Detected Car parameters

For the following example, we will use Tutorial Include a matlab activity in a model, concerning obstacle detection by a Car's sensor.

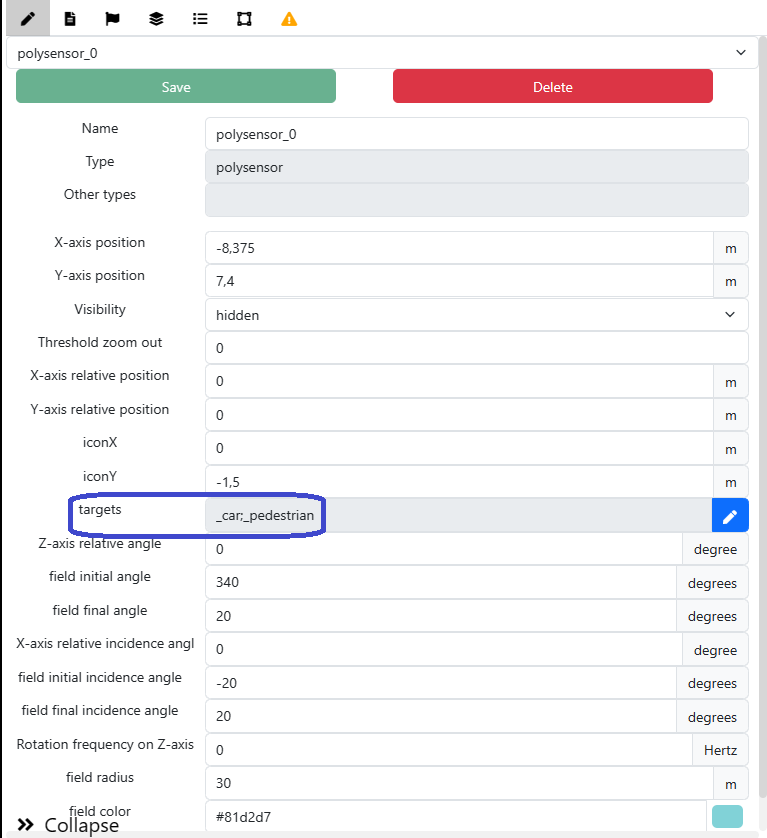

First, you have to add a polysensor to your Scene2D and declare which kind of targets it has to detect (here, Cars & Pedestrians):

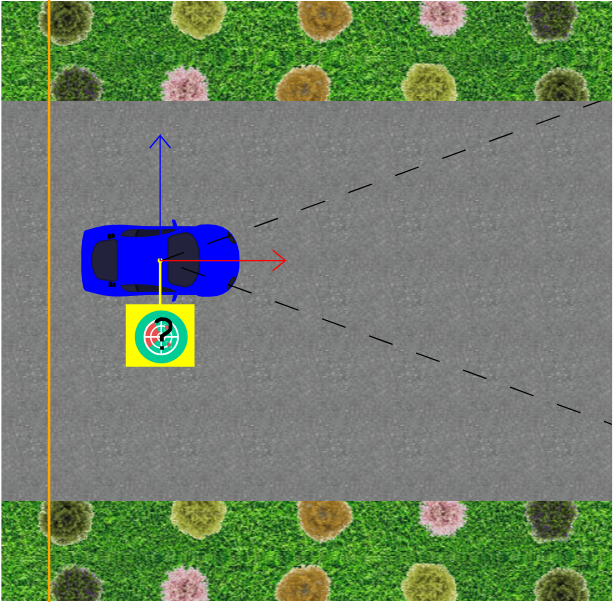

Second, you have to attach a polysensor to your Car (you can move the icon for more visibility):

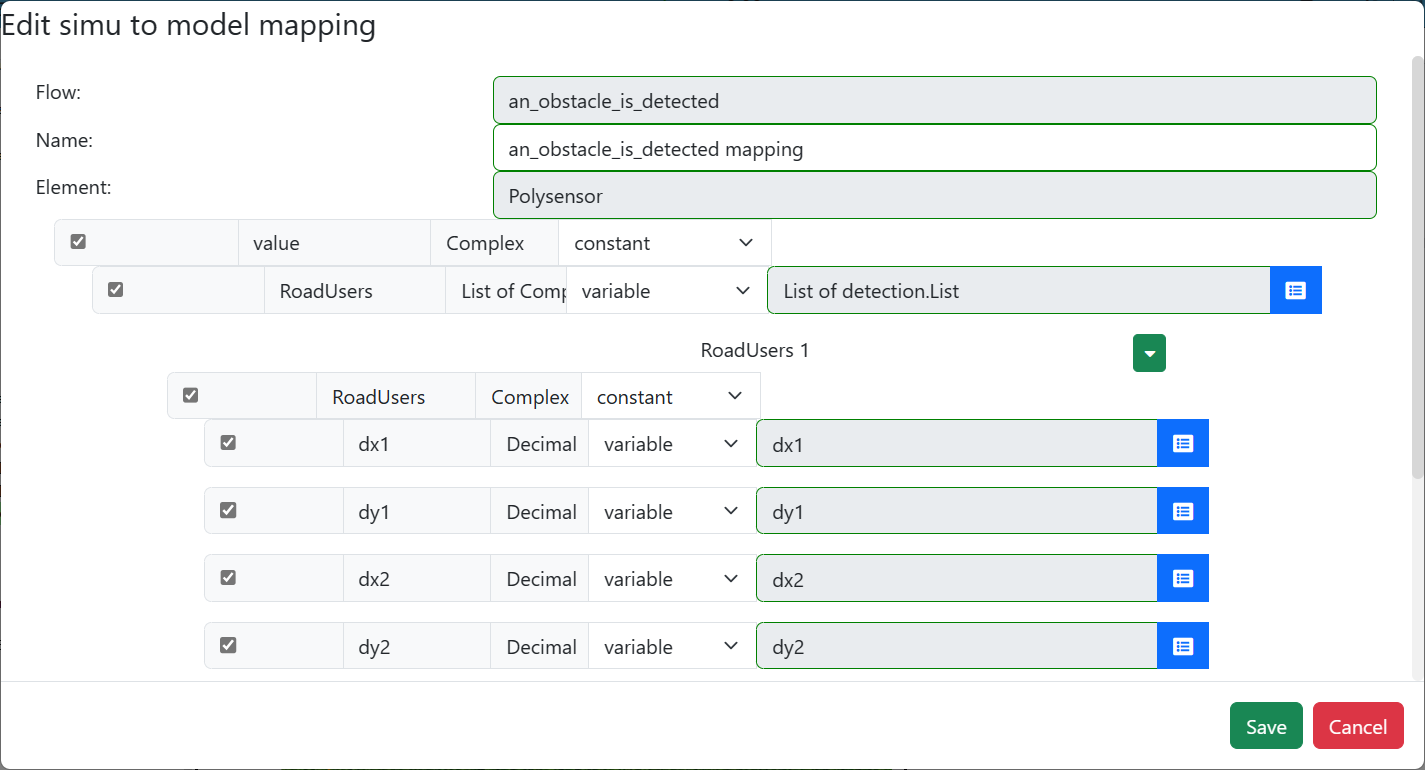

Third, create a Send flow mapping with the flow that populates the detected data to the model.
In our example, we want to detect a list of obstacles, so we have to indicate our List of detection.List and after make the correspondance between the data to populate in the model and the detected parameters.
You can find the final result below:

For your information, this is all detectable parameters in our example:

Show/Hide parameters

parameter	description	unit	type
dx1, dx2, dx3, dx4	Relative position of the element corners, on the X-axis from the nearest corner to the farthest corner.	meter	Decimal number
dy1, dy2, dy3, dy4	Relative position of the element corners, on the Y-axis from the nearest corner to the farthest corner.	meter	Decimal number
dz1, dz2, dz3, dz4	Relative position of the element corners, on the Z-axis from the nearest corner to the farthest corner.	meter	Decimal number
vrx	Relative speeed of the element, on the X-axis.	kilometers per hour	Decimal number
vry	Relative speed of the element, on the Y-axis.	kilometers per hour	Decimal number
da1, da2, da3, da4	Relative acceleration of the element corners, on the Z-axis from the nearest corner to the farthest corner.	meters per second squared	Decimal number
name	Name of the element.	-	Text
longitude coordinate	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

Triggered behaviours

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

Destroy

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

Events

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
At initialization	The polysensor can send information to the model once at initialization
Continually	The polysensor can send information to the model continuously
Zero detection	The polysensor can send information when there is no detection
At least one detection	The polysensor can send information when there is at least one detection
Start to detect	The polysensor can send information when going from no detection to at least one detection
Stop to detect	The polysensor can send information when going from at least one detection to no detection
