Street lamp

This element is a basic street lamp. The graphic origin of the Street lamp corresponds to the geometric center of the Street lamp.

Is an equipment	❌
Can have equipment	❌

This element must be used with 2D scene context.

Icon

2D Representation

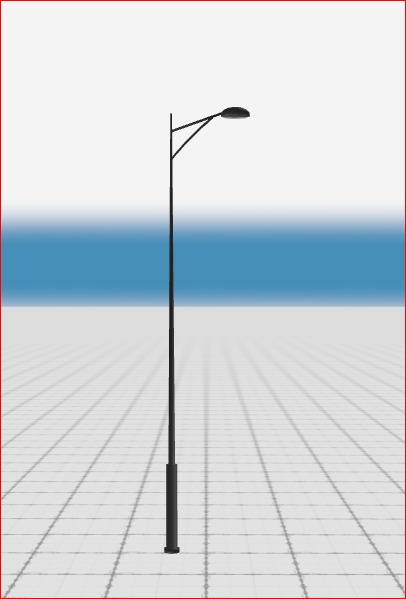

3D Representation

External parameters

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
State	✔️	✔️	State of the street lamp.	-	Enumeration (on, off)
X-axis position	✔️	✔️	Position of the element on the X-axis.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis.	meter	Decimal number
Z-axis angle	✔️	✔️	Angle of rotation of the element compared to its initial position.	degree	Decimal number
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number

| Length | ❌ | ❌ | Length of the street lamp. | meter | Decimal number | | Width | ❌ | ❌ | Width of the street lamp. | meter | Decimal number |

| Z-axis position | ❌ | ❌ | Position of the element on the Z-axis. | meter | Decimal number | | Height | ❌ | ❌ | Height of the street lamp. | meter | Decimal number | | X-axis angle | ❌ | ❌ | Angle of the element on the X-axis. | degree | Decimal number | | Y-axis angle | ❌ | ❌ | Angle of the element on the Y-axis. | degree | Decimal number | | longitude coordinate | ❌ | ❌ | Automatically calculated longitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number | | latitude coordinate | ❌ | ❌ | Automatically calculated latitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |

Triggered behaviours

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

Destroy

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.

Events

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all events

event	description
On Parameter Value Changed	The element can send information to the model when the value of the selected parameter has changed
At initialization	The street lamp can send information to the model once at initialization
Continually	The street lamp can send information to the model continuously
