Car

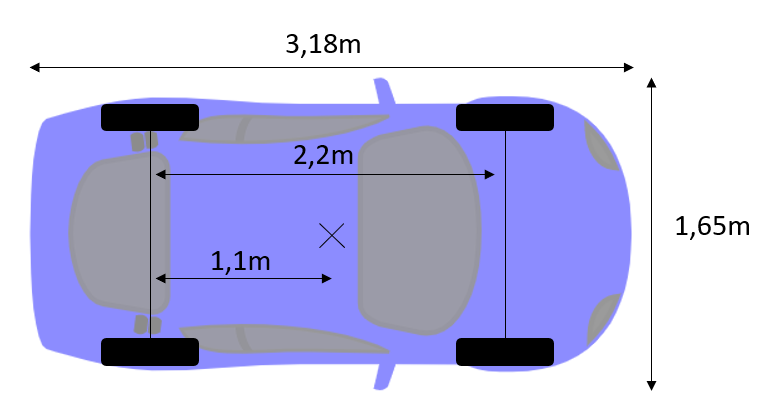

This element is a basic car with rear-wheel-drive layout. The graphic origin of the car corresponds with the geometric center of the car.


Is an equipment	❌
Can have equipment	✔️

This element must be used with 2D scene context.

Icon

2D Representation

3D Representation

External parameters

Show/Hide all parameters

parameter	editable via "Parameter" tab	updatable via a mapping	description	unit	type
X-axis position	✔️	✔️	Position of the element on the X-axis of the scene in which it is located.	meter	Decimal number
Y-axis position	✔️	✔️	Position of the element on the Y-axis of the scene in which it is located.	meter	Decimal number
Z-axis position	❌	❌	Position of the element on the Z-axis of the scene in which it is located.	meter	Decimal number
Visibility	✔️	✔️	This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group.	-	Enumeration (visible, hidden, inherit)
Threshold zoom out	✔️	❌	Zoom level from which its representation on the scene is no longer modified.	%	Decimal number
X-axis angle	❌	❌	Angle of the element on the X-axis of the scene in which it is located.	degree	Decimal number
Y-axis angle	❌	❌	Angle of the element on the Y-axis of the scene in which it is located.	degree	Decimal number
Z-axis angle	✔️	✔️	Angle of the element on the Z-axis of the scene in which it is located.	degree	Decimal number
Curvilinear position	✔️	✔️	Position on the trajectory.	meter	Decimal number
Trajectory	✔️	❌	Trajectory of the scene that the car will follow.	-	Enumeration
Speed	✔️	✔️	Speed on the X-axis of the car. This parameter can be profile.	kilometers per hour	Decimal number
Target speed	❌	❌	(non-functional) The target speed of the car.	kilometers per hour	Decimal number
Covered Distance	❌	❌	The distance covered by the car.	meter	Decimal number
Accl. coeff.	✔️	✔️	Acceration on the X-axis of the car.	meters per second squared	Decimal number
Direction	✔️	✔️	Gear mode of the car.	-	Enumeration (forward, reverse)
Front wheel steering angle	✔️	✔️	Average value of the front wheel steering angles of the car.	radian	Decimal number
Color	✔️	✔️	Color of the element. This parameter can be edited.	-	Hexadecimal
Trunk status	✔️	❌	Opening state of the car trunk.	-	Enumeration (opened, closed)
Front left door	✔️	❌	Opening state of the car front left door.	-	Enumeration (opened, closed)
Front right door	✔️	❌	Opening state of the car front right door.	-	Enumeration (opened, closed)
Rear left door	✔️	❌	Opening state of the car rear left door.	-	Enumeration (opened, closed)
Rear right door	✔️	❌	Opening state of the car rear right door.	-	Enumeration (opened, closed)
Length	❌	❌	Length of the car.	meter	Decimal number
Width	❌	❌	Width of the car.	meter	Decimal number
Height	❌	❌	Height of the car.	meter	Decimal number
Entraxe	❌	❌	Distance between front axle and rear axle.	meter	Decimal number
Rear axle distance	❌	❌	Distance between rear axle and geometric center.	meter	Decimal number
longitude coordinate	❌	❌	Automatically calculated longitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number
latitude coordinate	❌	❌	Automatically calculated latitude value, based on the origin defined for the context and the position of the element.	degree	Decimal number

Triggered behaviours

See Triggered behaviours and events page for more explanation: Triggered behaviours and events.

Show/Hide all triggered behaviours

Destroy

At the reception of the flow, the element is destroy.

No parameters for this triggered behaviour.
