Relief
This element is a relief that can represent dunes, hills or mountains. When elements are located on relief, positionZ of elements are automatically updated to the relief altitude. Furthermore, element located behind a relief can not been detected by Polysensor element.
| Is an equipment | ❌ |
| Can have equipment | ❌ |
This element must be used with 2D scene context.
Icon

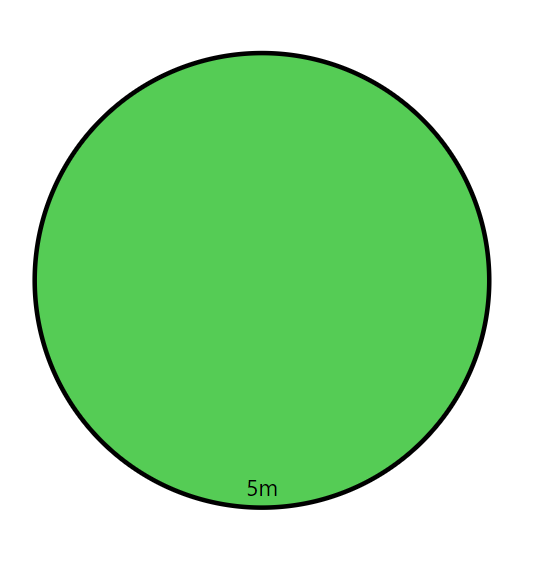

2D Representation
3D Representation
No reprensation available on 3D.
External parameters
You can edit the units
Show/Hide all parameters
| parameter | editable via "Parameter" tab | updatable via a controller | description | default unit | type |
|---|---|---|---|---|---|
| Visibility | ✔️ | ✔️ | This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group. | - | Enumeration (visible, hidden, inherit) |
| Threshold zoom out | ✔️ | ❌ | Zoom level from which its representation on the scene is no longer modified. | % | Decimal number |
| Height | ✔️ | ✔️ | Altitude of the element. | meter | Decimal number |
| Radius | ✔️ | ✔️ | Radius of the element. | meter | Decimal number |
| Color | ✔️ | ✔️ | Color of the relief circle. This parameter can be edited. | - | Hexadecimal |
| X-axis relative position | ❌ | ❌ | Relative position of the element, from its attached element, on the X-axis. | meter | Decimal number |
| Y-axis relative position | ❌ | ❌ | Relative position of the element, from its attached element, on the Y-axis. | meter | Decimal number |
| Length | ❌ | ❌ | Length of the element. | meter | Decimal number |
| Width | ❌ | ❌ | Width of the element. | meter | Decimal number |
| Z-axis position | ❌ | ❌ | Position of the element on the Z-axis of the scene in which it is located. | meter | Decimal number |
| longitude coordinate | ❌ | ❌ | Automatically calculated longitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
| latitude coordinate | ❌ | ❌ | Automatically calculated latitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
Triggered behaviours
See Actions page for more explanation.
Show/Hide all triggered behaviours
Destroy
At the reception of the flow, the element is destroy.
No parameters for this triggered behaviour.
Events
See Events page for more explanation.
Show/Hide all events
| event | description |
|---|---|
| On Parameter Value Changed | The element can send information to the model when the value of the selected parameter has changed |
| At initialization | The element can send information to the model once at initialization |
| Continually | This event is triggered at each cycle of the Virtual Bench |
