Screen
This element represents a screen on which one of the HMI contexts is displayed. It is useful for integrating the HMI context into your 3D scene.
| Is an equipment | ✔️ |
| Can have equipment | ❌ |
This element must be used with 2D scene context.
Icon
2D Representation

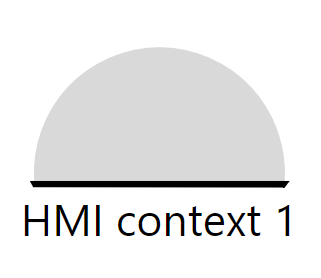

Screen on scene 2D

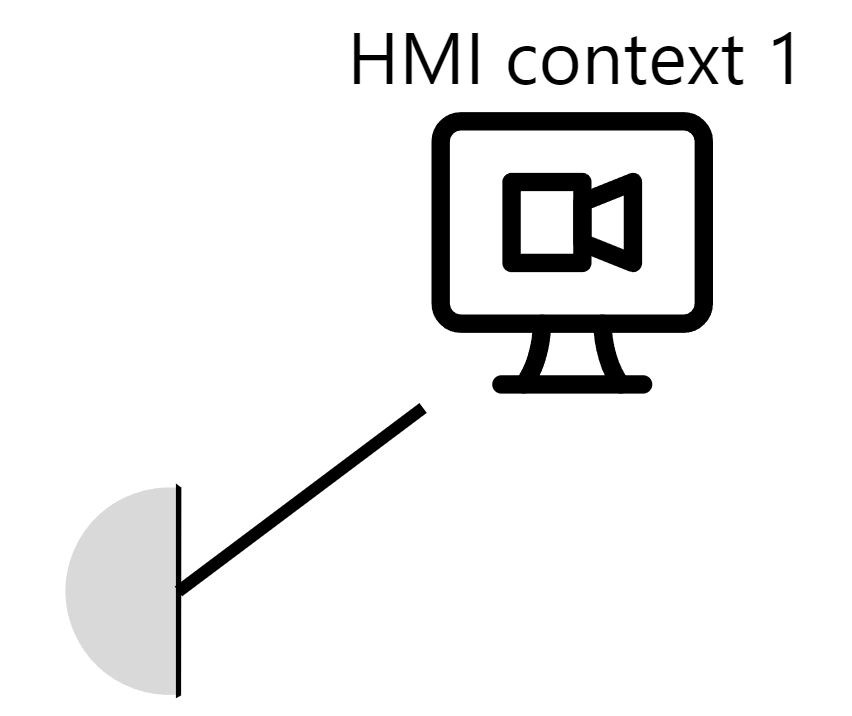

Attached screen on Scene2D

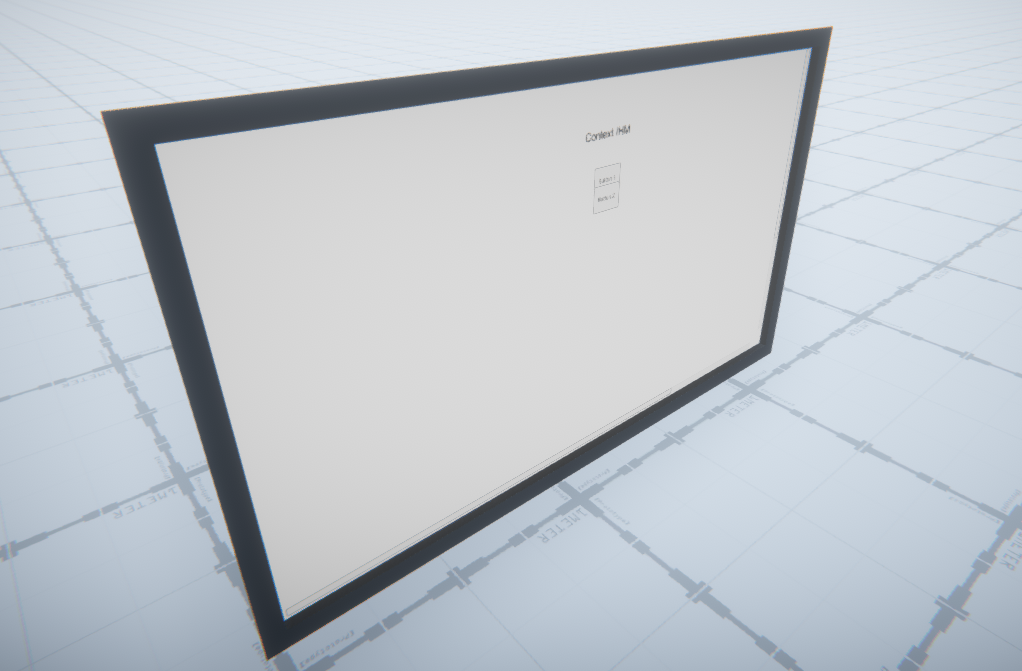

3D Representation
External parameters
Show/Hide all parameters
| parameter | editable via "Parameter" tab | updatable via a mapping | description | unit | type |
|---|---|---|---|---|---|
| X-axis position | ✔️ | ✔️ | Position of the element on the X-axis. | meter | Decimal number |
| Y-axis position | ✔️ | ✔️ | Position of the element on the Y-axis. | meter | Decimal number |
| Z-axis angle | ✔️ | ✔️ | Angle of rotation of the element compared to its initial position. | degree | Decimal number |
| iconX | ✔️ | ❌ | Relative position of the icon, from the origin of the attache element, on the X-axis. | meter | Decimal number |
| iconY | ✔️ | ❌ | Relative position of the icon, from the origin of the attache element, on the Y-axis. | meter | Decimal number |
| Visibility | ✔️ | ✔️ | This parameter allows you to choose if you want the element to be visible or not on the scene during the execution of the scenario. If the item is part of a group, it can inherit the value of that group. | - | Enumeration (visible, hidden, inherit) |
| Threshold zoom out | ✔️ | ❌ | Zoom level from which its representation on the scene is no longer modified. | % | Decimal number |
| Z-axis position | ✔️ | ✔️ | Position of the element on the Z-axis. | meter | Decimal number |
| X-axis relative position | ✔️ | ❌ | Position of the element on the X-axis relative to its owner. | meter | Decimal number |
| Y-axis relative position | ✔️ | ❌ | Position of the element on the Y-axis relative to its owner. | meter | Decimal number |
| Z-axis relative position | ✔️ | ❌ | Position of the element on the Z-axis relative to its owner. | meter | Decimal number |
| Z-axis relative angle | ❌ | ✔️ | Rotation of the element on the Z-axis relative to its owner. | degree | Decimal number |
| Displayed Context | ✔️ | ✔️ | Context displayed on the screen. | - | Enumeration |
| longitude coordinate | ❌ | ❌ | Automatically calculated longitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
| latitude coordinate | ❌ | ❌ | Automatically calculated latitude value, based on the origin defined for the context and the position of the element. | degree | Decimal number |
Triggered behaviours
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all triggered behaviours
Destroy
At the reception of the flow, the element is destroy.
No parameters for this triggered behaviour.
Events
See Triggered behaviours and events page for more explanation: Triggered behaviours and events.
Show/Hide all events
| event | description |
|---|---|
| On Parameter Value Changed | The element can send information to the model when the value of the selected parameter has changed |
| Continually | The screen can send information to the model continuously |
| At initialization | The screen can send information to the model once at initialization |
